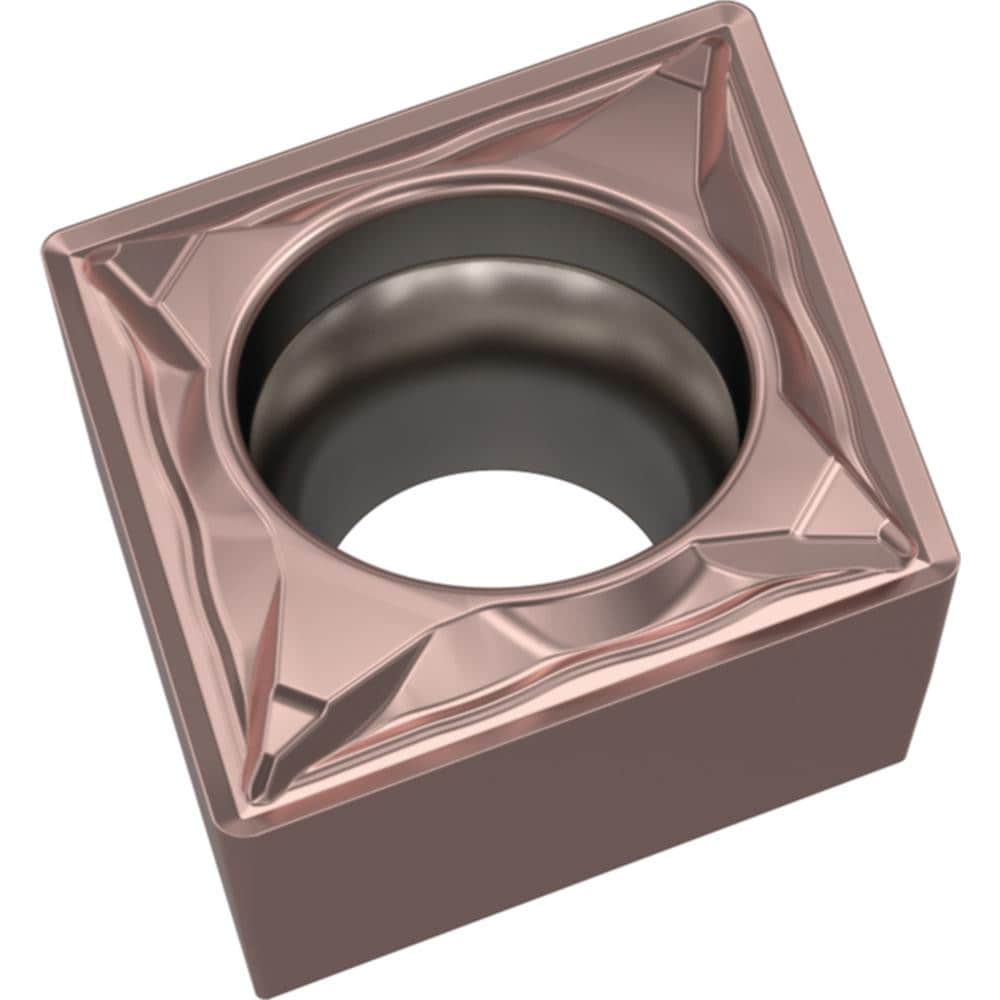

Brand: Widia / Part #: 5684342
Item #: 95274692
Brand: Widia
Model #: 5684342
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 2152 |
| Insert Shape | Diamond |
| Coating/Finish | AlTiSiN |
| Manufacturer Grade | WS10PT |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.1270 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Clearance Code | C |
| Tolerance Code | M |
| Included Angle | 80.00 |
| Relief Angle | 7.000 |
| Series | CCMT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.2539 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | CCMT2152FP |
| Iso Code | CCMT060208FP |
| Manufacturers Catalog Number | CCMT2152FP |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | FP |
| Cutting Edge Style | Sharp |
| Style | CCMT |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
