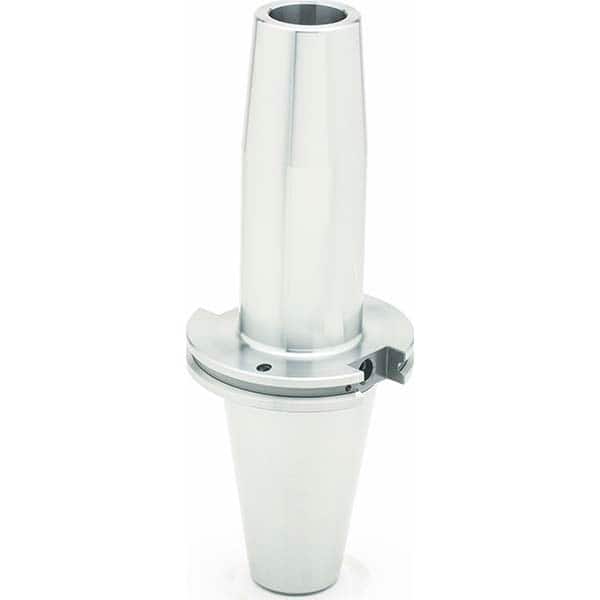

Parlec - Shrink-Fit Tool Holders & Adapters Shank Type: Taper Shank Taper Size: CAT50
Item #: 11787223
Brand: Parlec
Model #: C50-62SF630-9C
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
Product Specifications
Shrink-Fit Tool Holders & Adapters; Shank Type: Taper Shank ; Taper Size: CAT50 ; Hole Diameter (Inch): 0.625 ; Projection (Decimal Inch): 6.3000 ; Nose Diameter (Decimal Inch): 1.0600 ; Through Coolant: Yes
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 0.625 |
| Projection (Decimal Inch) | 6.3000 |
| Nose Diameter (Decimal Inch) | 1.0600 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 1.9700 |
| Overall Length (Decimal Inch) | 10.30000 |
| Balanced to (RPM) | 25000 |
| Additional Information | with Coolant Ports |
| TIR (mm) | 0.0030 |
