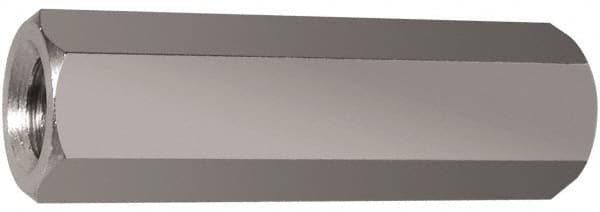

Electro Hardware - M3x0.50, 15mm OAL, 4.5mm Across Flats, Stainless Steel Female Hex Circuit Board Standoff
Item #: 77131019
Brand: Electro Hardware
Model #: MP429M09F16M3
Features and Benefits
Circuit board standoffs with female threads are internally threaded to accept male fasteners or other standoffs. They are internally threaded on one end.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Type | Female |
| Material | Stainless Steel |
| System of Measurement | Metric |
| Body Shape | Hex |
| Overall Length (mm) | 15.00 |
| Thread Style | Fully Threaded |
| Thread Size | M3x0.50 |
| Width Across Flats (mm) | 4.50 |
| Finish/Coating | Uncoated |
| Body Length (mm) | 15.00 |
| Thread Depth (mm) | 15.00 |
| Length Tolerance (mm) | -0.130 to 0.130 |
| Material Grade | Grade 303 |
| Fastener Standard | QQ-S-763 |
