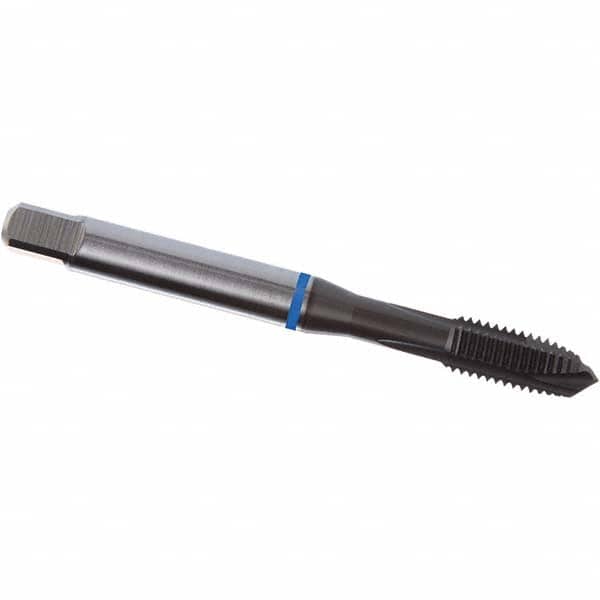

DORMER - 5/8-11 UNC 2B/3B 4 Flute TiAlN/WC/C Finish PM Cobalt Spiral Point Tap
Item #: 16952194
Brand: DORMER
Model #: 7350291
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Titanium aluminum nitride plus tungsten carbide and carbon (TiAlN + WC/C) is a wear resistant coating that protects cutting edges. It is commonly used on difficult-to-machine materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 5/8-11 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Class of Fit | 2B/3B |
| Thread Limit | H5 |
| Finish/Coating | TiAlN/WC/C |
| Material | PM Cobalt |
| Through Coolant | Through Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 4.3310 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.9060 |
| Series/List | E813 |
| Style | High Performance Spiral Point |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Square Size (Decimal Inch) | 0.3580 |
| Material Application | Stainless Steel |
