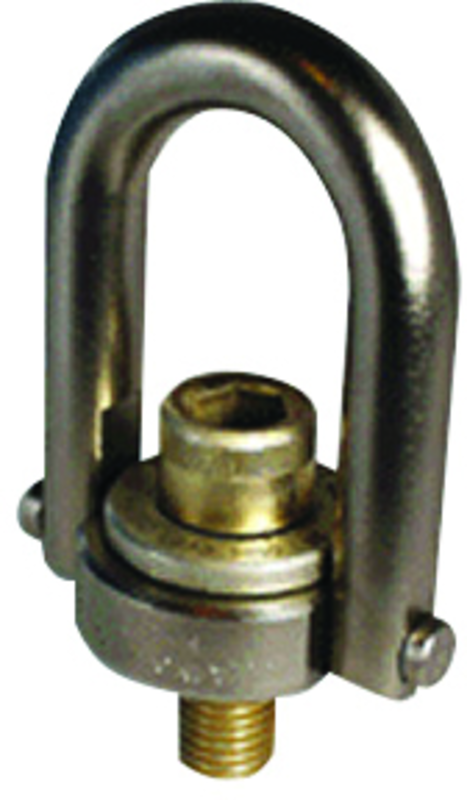

M64 Hoist Ring

Item #: SG6723488
Manufacturer: Jergens
Mfg #: 23488

Technical Specifications:
•Base Diameter: 146 •Base Height: 210 •Brand Name: Jergens •Diameter: 57.15 •External Radius: 419.1 •Overall Width: 297.6 •Radius: 76.2 •Rating Load: 22500 lbs •Size: M64 x 6.0 •Thread Length: 96.0 •Torque (ft/lbs): 2845 •Type: Center-Pull Standard U-Bar

Description:
•Full 360 degree Swivel and 180 degree Pivot action •Rated at 5:1 Strength factor •Material: Alloy Steel •Finish: Black Oxide (Except Washer) •U-Bar, bolt, pins, base, washer and bushing are magnetic particle inspected •Washer: Zinc Plated with Gold Colored (inch), Clear/Blue (metric) Conversion Coating •Proof tested to 200% of rated load capacity

Shipping Info:
•Actual Weight - 93.0000 •Addl Fee Over 70lb-$23.00 per item
