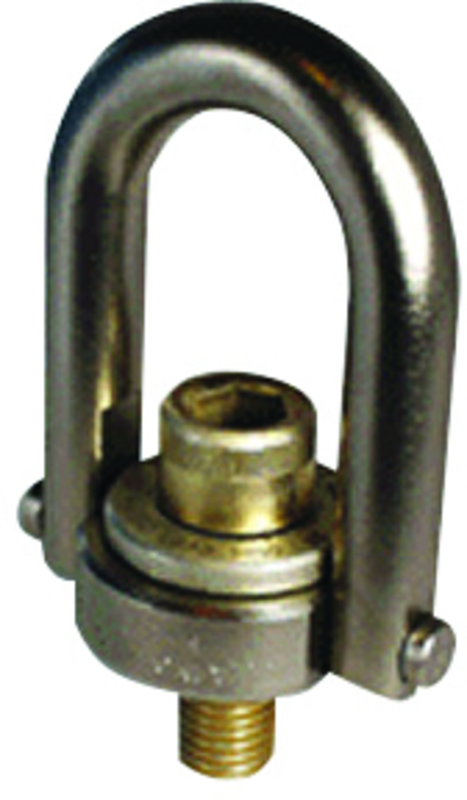

M42 Hoist Ring

Item #: SG6723484
Manufacturer: Jergens
Mfg #: 23484

Technical Specifications:
•Base Diameter: 106.4 •Base Height: 160.5 •Brand Name: Jergens •Diameter: 44.4 •External Radius: 316.7 •Overall Width: 217.2 •Radius: 57.2 •Rating Load: 12500 lbs •Size: M42 x 4.5 •Thread Length: 68.0 •Torque (ft/lbs): 980 •Type: Center-Pull Standard U-Bar

Description:
•Full 360 degree Swivel and 180 degree Pivot action •Rated at 5:1 Strength factor •Material: Alloy Steel •Finish: Black Oxide (Except Washer) •U-Bar, bolt, pins, base, washer and bushing are magnetic particle inspected •Washer: Zinc Plated with Gold Colored (inch), Clear/Blue (metric) Conversion Coating •Proof tested to 200% of rated load capacity

Shipping Info:
•Actual Weight - 38.3300
