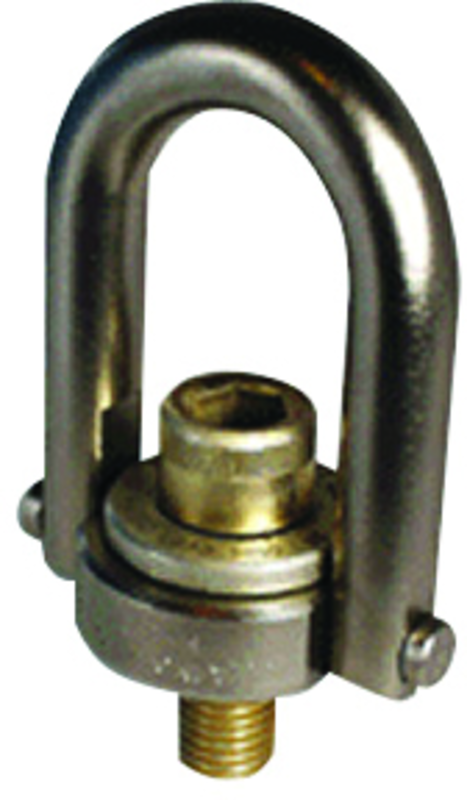

2-8 Center Pull Hoist Ring

Item #: SG672343508
Manufacturer: Jergens
Mfg #: 23435-08

Technical Specifications:
•Base Diameter: 4.19 •Base Height: 6 •Brand Name: Jergens •Diameter: 1.75 •External Radius: 12.47 •Overall Width: 8.55 •Radius: 2.25 •Rating Load: 30000 lbs •Size: 2-8 •Thread Length: 3-1/8 •Torque (ft/lbs): 1100 •Type: Center-Pull Standard U-Bar •Weight: 36 lbs

Description:
•Full 360 degree swivel and 180 degree pivot action •Rated at 5:1 strength factor •Material: alloy steel •Finish: black oxide (except washer) •U-Bar, bolt, pins, base, washer and bushing are magnetic particle inspected •Washer: zinc plated with Gold Colored (inch), clear/blue (metric) conversion coating

Shipping Info:
•Actual Weight - 41.5700
