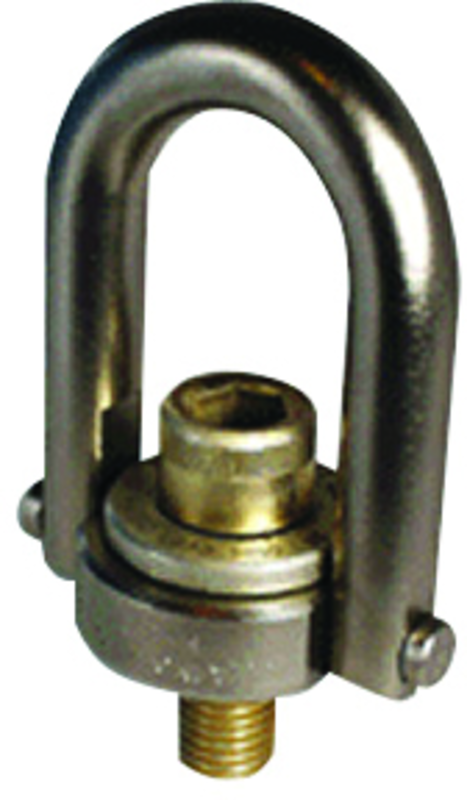

3/4-10 Center Pull Hoist Ring

Item #: SG6723418
Manufacturer: Jergens
Mfg #: 23418

Technical Specifications:
•Base Diameter: 1.50 •Base Height: 2-1/8 •Brand Name: Jergens •Diameter: .75 •External Radius: 4.78 •Overall Width: 3.52 •Radius: .88 •Rating Load: 5000 lbs •Size: 3/4-10 •Thread Length: 1-1/2 •Torque (ft/lbs): 100 •Type: Center-Pull Standard U-Bar •Weight: 3.0 lbs

Description:
•Full 360 degree swivel and 180 degree pivot action •Rated at 5:1 strength factor •Material: alloy steel •Finish: black oxide (except washer) •U-Bar, bolt, pins, base, washer and bushing are magnetic particle inspected •Washer: zinc plated with Gold Colored (inch), clear/blue (metric) conversion coating

Shipping Info:
•Actual Weight - 2.6900
