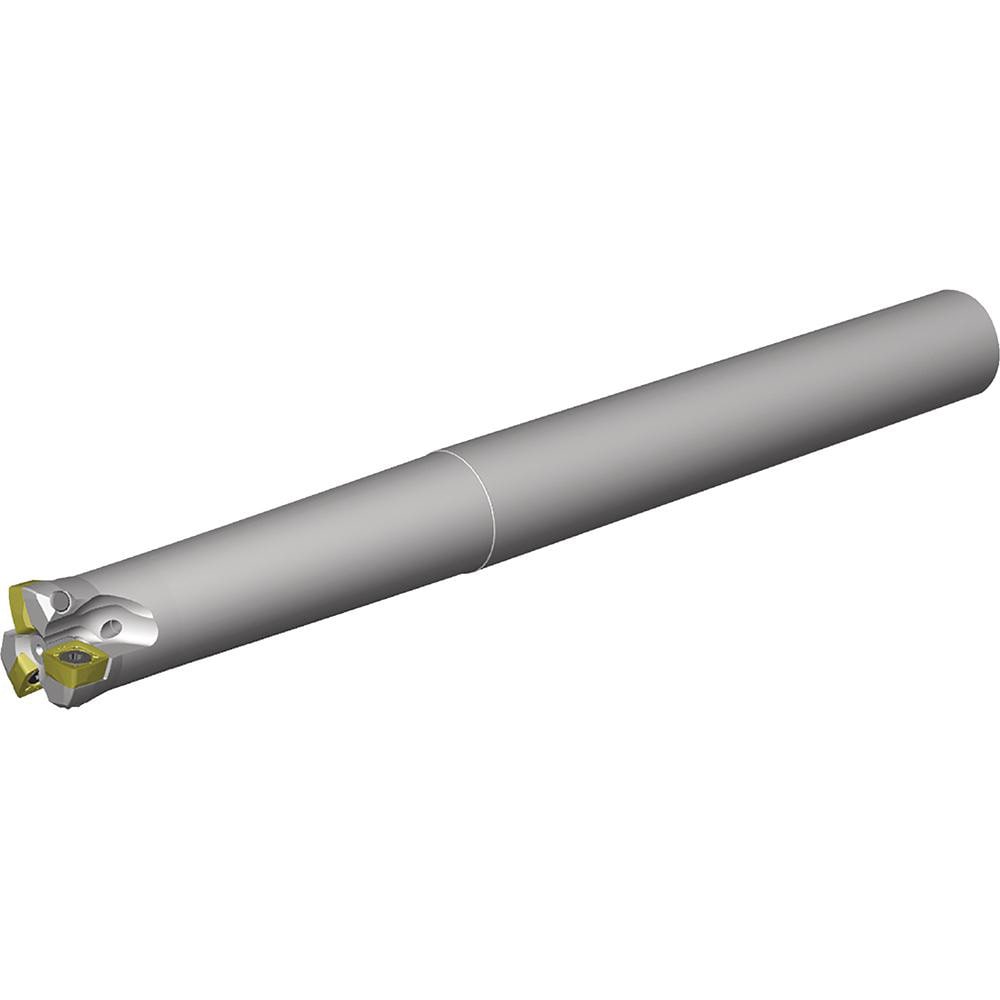

Brand: Widia / Part #: 6712972
Item #: 83168302
Brand: Widia
Model #: 6712972
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.3841 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0354 |
| Toolholder Style | VXF |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (mm) | 0.75 |
| Maximum Ramping Angle | 6.74 |
| Compatible Insert Style | XPPT |
| Compatible Insert Size Code | 0703.. |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 7.5000 |
| Overall Length (Inch) | 7-1/2 |
| Overall Length (mm) | 7.50 |
| Series | VXF-07 |
| Flute Type | Straight |
| Maximum RPM | 57000 |
| Head Length (Decimal Inch) | 3.0000 |
| Functional Length (Decimal Inch) | 7.5000 |
| Projection (Decimal Inch) | 7.5000 |
| Projection (Inch) | 7-1/2 |
| Tool Application | Plunging; Milling; Ramping |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
