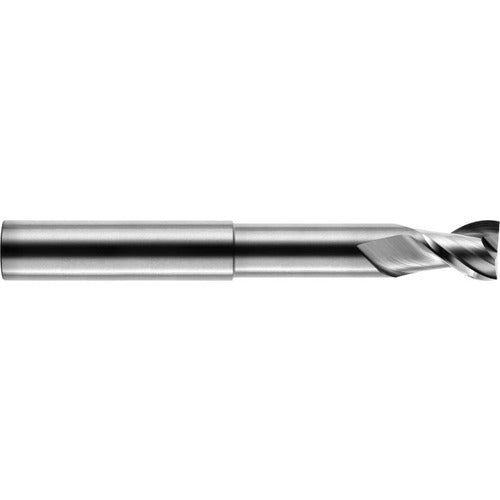

MFMHV-203-10-400-DLC-TC 1
Item #: RJ4151850
Brand: Robb Jack
Model #: MFMHV-203-10-400-DLC-TC
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Usable Length (LU) | 57 mm |
| Depth of Cut Maximum (APMX) | 13 mm |
| Corner Radius (RE) | 4 mm |
| Overall Length (OAL) | 100 mm |
| Tool Type | Solid Carbide Endmill |
| Coating | DLC |
| Measurement Type | Metric |
| Flute Count (NOF) | 2 |
| Series/List # | MFMHV-203 |
| Flute Helix Angle (FHA) | 37 Degrees |
