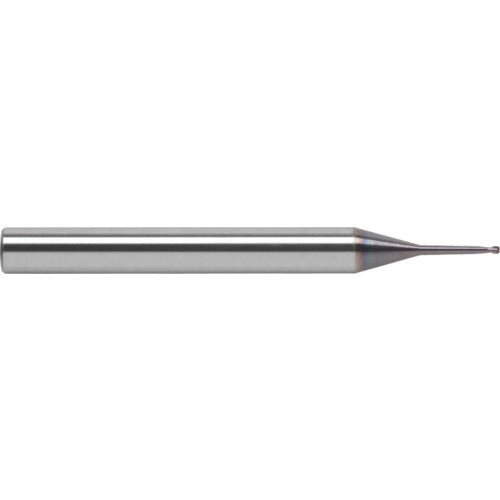

MTM-202-01.5 1.5MM DIA 2-
Item #: RJ40MTM202015
Brand: Robb Jack
Model #: MTM-202-01.5
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.5 mm |
| End Shape | Torus |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Usable Length (LU) | 5 mm |
| Depth of Cut Maximum (APMX) | 1.5 mm |
| Corner Radius (RE) | 0.5 mm |
| Overall Length (OAL) | 63 mm |
| Body Half Taper Angle (BHTA) | 3 Degrees |
| Coating | AlTiN |
| Tool Type | Solid Carbide Endmill |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | MTM-202 |
