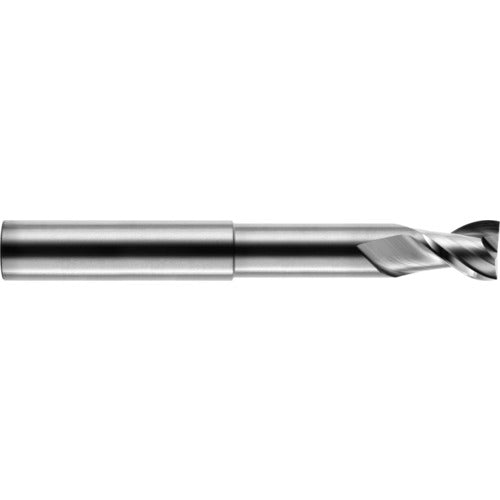

FM-204-20-030 0.625-IN DI
Item #: RJ40FM20420030
Brand: Robb Jack
Model #: FM-204-20-030
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Usable Length (LU) | 2-5/8″ |
| Depth of Cut Maximum (APMX) | 5/8″ |
| Corner Radius (RE) | 3/32″ |
| Overall Length (OAL) | 6″ |
| Tool Type | Solid Carbide Endmill |
| Coating | Uncoated |
| Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees |
| Series/List # | FM-204 |
