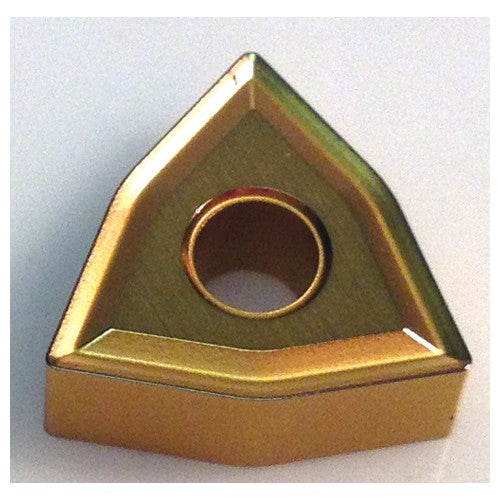

WNMG 433 M45 PT425, 0.047'Ä≥ Corner Radius, 0.187'Ä≥ Thick, 1/2'Ä≥ Inscribed Circle, TiN|TiCN|Al2O3|TiN, Trigon, Turning Indexable Insert
Item #: RE1013050
Brand: Rapidkut
Model #: RE1013050
| Product Specifications | |
|---|---|
| Applicable Material | Steel|Stainless Steel|Cast Iron |
| Coating | TiN|TiCN|Al2O3|TiN |
| Insert Style | WNMG |
| Grade | PT425 |
| Corner Radius (RE) | 0.047″ |
| Tool Type | Turning Insert |
| Insert Size | 433 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.187″ |
| Chip Breaker Type | M45 |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Shape | Trigon |
| Cutting Edge Material | Carbide |
| Series/List # | WNMG 433-M45 |
