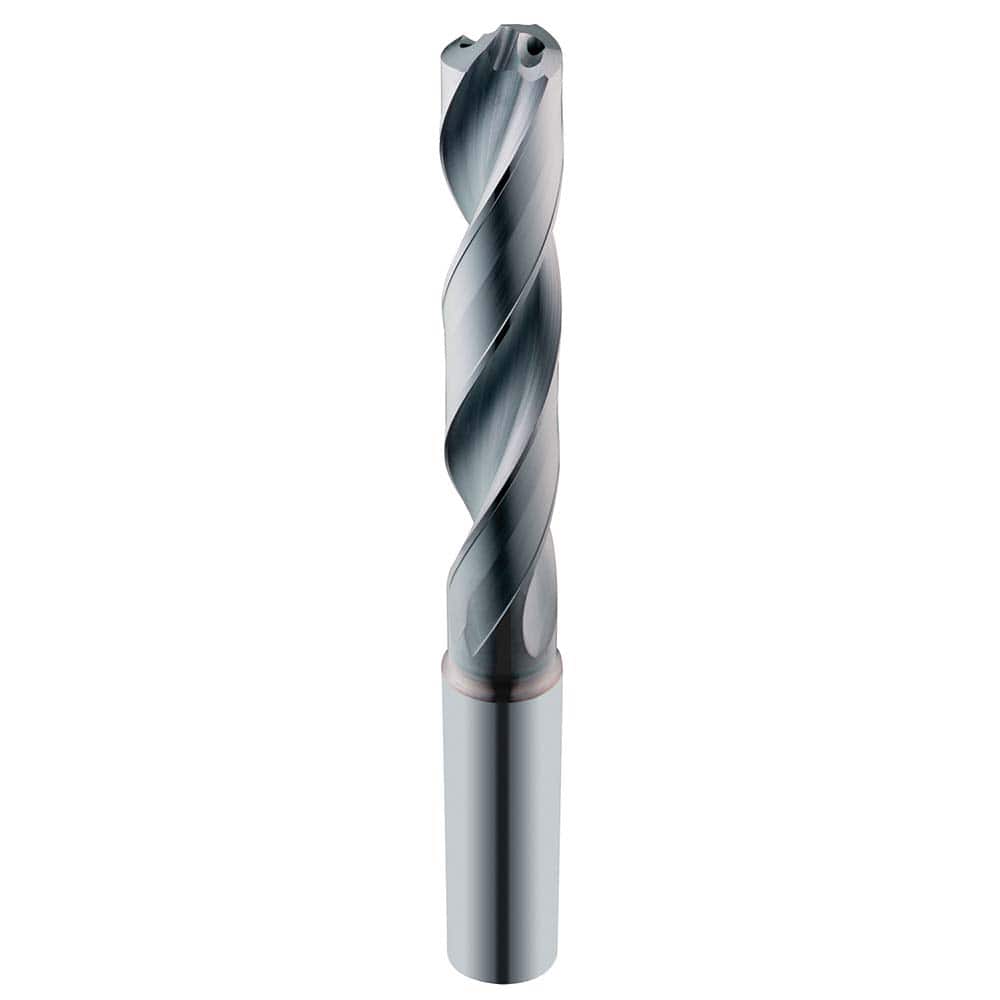

SGS - Screw Machine Length Drill Bits Drill Bit Size (Decimal Inch): 0.2795 Drill Bit Size (mm): 7.10
Item #: 19243740
Brand: SGS
Model #: 66441
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
Product Specifications
Screw Machine Length Drill Bits; Drill Bit Size (Decimal Inch): 0.2795 ; Drill Bit Size (mm): 7.10 ; Drill Point Angle: 135 ; Drill Bit Material: Solid Carbide ; Drill Bit Finish/Coating: TX ; Flute Type: Spiral
| Drill Bit Size (Decimal Inch) | 0.2795 |
| Drill Bit Size (mm) | 7.10 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TX |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Cylindrical |
| Coolant Through | Yes |
| Flute Length (mm) | 41.00 |
| Flute Length (Decimal Inch) | 1.6142 |
| Overall Length (mm) | 78.9991 |
| Overall Length (Decimal Inch) | 3.11020 |
| Point Type | Standard |
| Shank Diameter (mm) | 8.0010 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Flute Type | Spiral |
| Specification Designation | DIN |
| Maximum Drilling Depth (Decimal Inch) | 1.6142 |
| Number of Flutes | 2 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 35.999 |
| Shank Length (Decimal Inch) | 1.4173 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 1.47 |
| Drill Point Length (Decimal Inch) | 0.0579 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +.00024/+.00083 |
| Drill Bit Diameter Tolerance (mm) | +0.006/+0.021 |
| Drill Bit Diameter Tolerance (mm) | +0.006/+0.021 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +.00024/+.00083 |
| Specification Number | DIN 6537 |
| Number of Margins | 4.000 |
| PSC Code | 3455 |
| Specification Number | DIN 6537 |
| Web Thinning | Web-Thinned |
| Through Coolant | Yes |
| Drill Bit Grade | High Performance |
| Drill Bit Grade | High Performance |
| Material Grade | Micro-Grain |
| Series/List | 142P |
| Length Type | Short |
