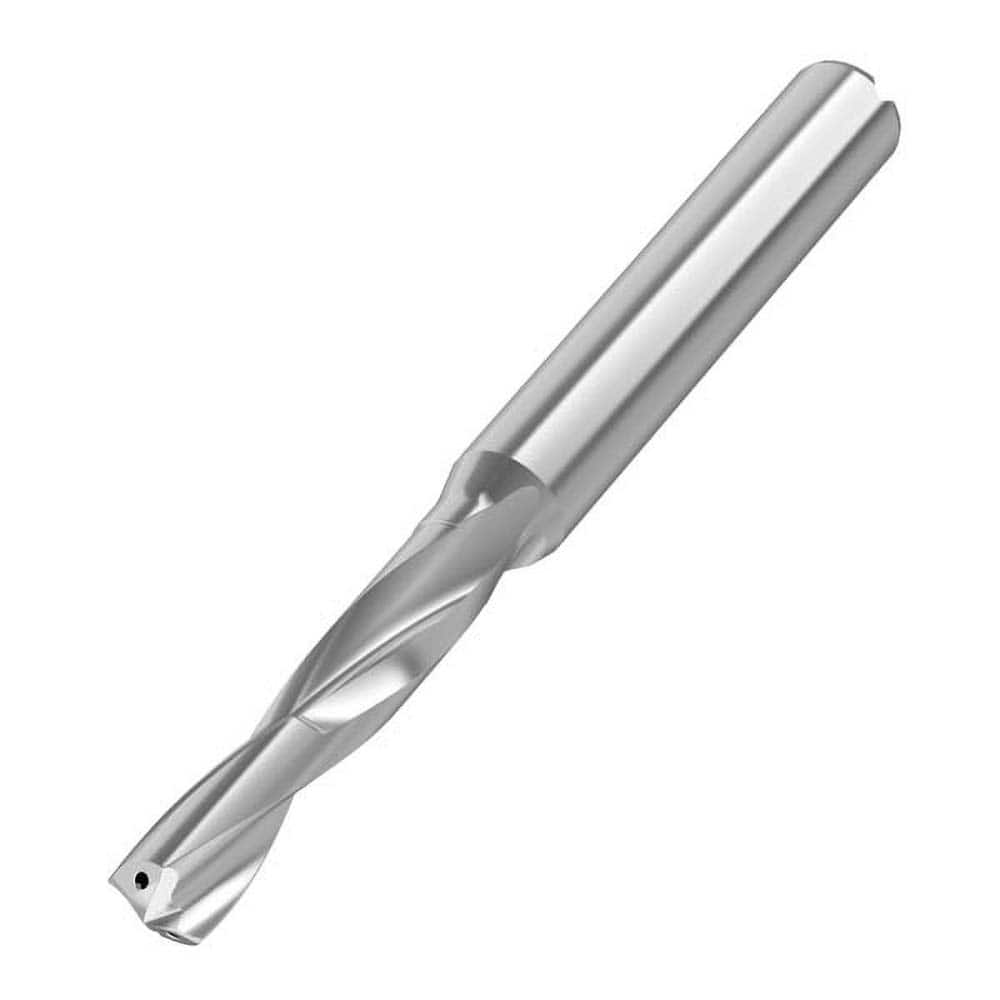

Kennametal - Screw Machine Length Drill Bits Drill Bit Size (Decimal Inch): 0.3750 Drill Bit Size (Inch): 3/8
Item #: 15663529
Brand: Kennametal
Model #: 6771208
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on non-ferrous metals.
Product Specifications
Screw Machine Length Drill Bits; Drill Bit Size (Decimal Inch): 0.3750 ; Drill Bit Size (Inch): 3/8 ; Drill Point Angle: 128 ; Drill Bit Material: Solid Carbide ; Drill Bit Finish/Coating: Uncoated ; Flute Type: Helical Flute
| Drill Bit Size (Decimal Inch) | 0.3750 |
| Drill Bit Size (Inch) | 3/8 |
| Drill Point Angle | 128 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Uncoated |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 38.00 |
| Overall Length (mm) | 80.0000 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 10.0000 |
| Flute Type | Helical Flute |
| Maximum Drilling Depth (mm) | 27.00 |
| Number of Flutes | 2 |
| Shank Length (mm) | 42.000 |
| Drill Point Length (mm) | 1.65 |
| Drill Point Length (Decimal Inch) | 0.0650 |
| Drill Bit Grade | KDC15 |
| Drill Bit Grade | KDC15 |
| Series/List | B66 |
