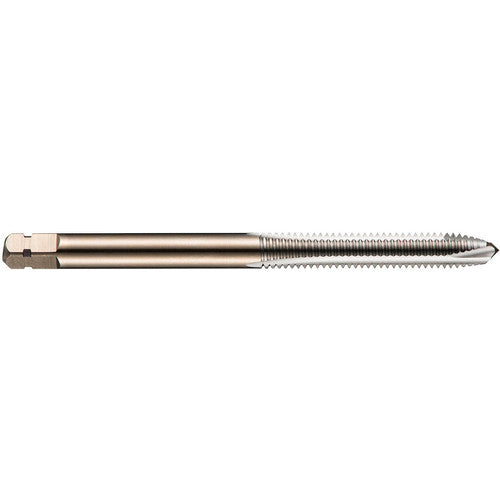

E025 3/8-16 H3 2F SPPT BZ
Item #: PT900581155
Brand: Dormer
Model #: 5974039
| Product Specifications | |
|---|---|
| Thread Standard | UNC |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Thread Size | 3/8″ - 16 |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Thread Diameter Size (TDZ) | 3/8″ |
| Thread Cutting Part Length (THL) | 0.602″ |
| Threads per Inch (TPI) | 16 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Tolerance Class (TCTR) | 3B |
| Tapping Prehole Diameter (Pre-hole) | 5/16″ |
| Usable Length (LU) | 1.2915″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 2-15/16″ |
| Style | Plug |
| Chamfer | 3.5P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | Bright |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Length Group | 2.5xD |
| Cutting Edge Material | HSS-E |
| Square Size | 0.286″ |
| Standard | ANSI |
| Measurement Type | Fractional |
| Tool Type | Machine Tap |
| Series/List # | E025 |
