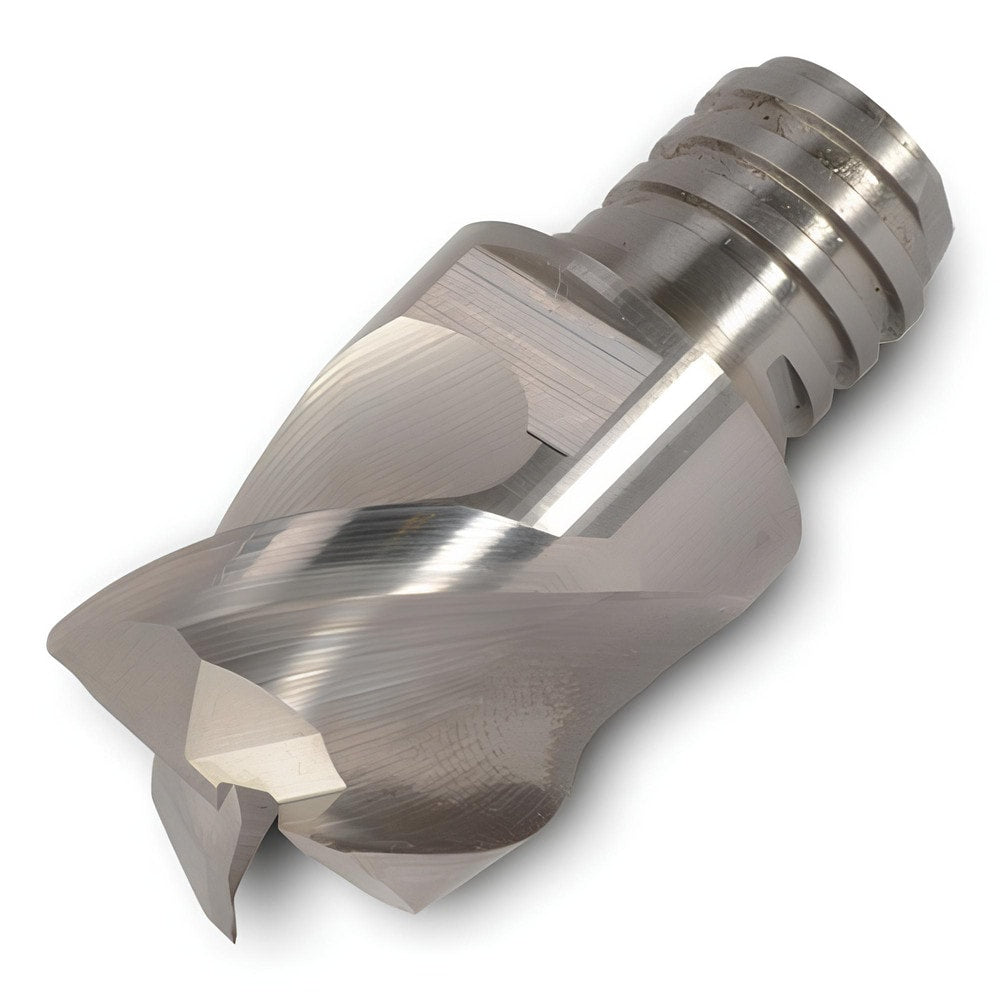

Brand: Ingersoll Cutting Tools / Part #: 5811791
Item #: 94533718
Brand: Ingersoll Cutting Tools
Model #: 5811791
Product Specifications
| Milling Tip Type | End |
| Milling Tip Style | 46D |
| Maximum Depth of Cut (mm) | 7.00 |
| Cutting Diameter (mm) | 10.00 |
| Tool Material | Carbide |
| Depth of Cut (mm) | 7.00 |
| Manufacturer Grade | IN05S |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | 46D |
| Corner Radius (mm) | 12.70 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Thread Size | T06 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 46D10007T6RD05 |
| Length of Cut (mm) | 13.0000 |
| Helix Angle | 45 |
| Coolant Through | No |
| Overall Length (mm) | 13.0000 |
| Included Angle Degree | 90 |
| Coating/Finish | Uncoated |
| Number Of Flutes | 3 |
