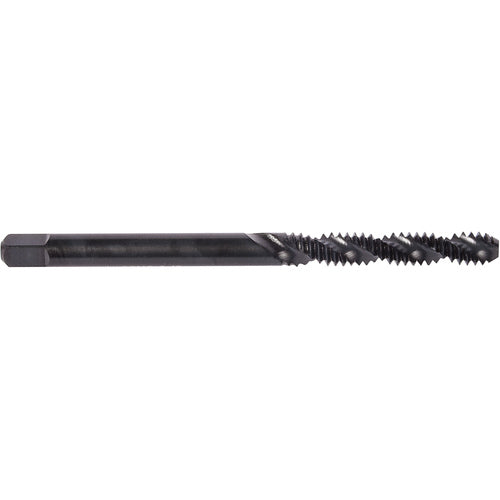

No.10 24 3 Flute Bottoming Union Butterfield HSS Steam Tempered UNC Machine Tap Spiral Flute 40 ANSI E-code # 159010-24NO3
Item #: PT411010946
Brand: Union Butterfield
Model #: 6007642
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #10 |
| Tool Type | Machine Tap |
| Threads per Inch (TPI) | 24 |
| Coating | Black Oxide |
| Thread Standard | NC |
| Flute Type | Spiral |
| Overall Length (OAL) | 2-3/8″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Hard Materials | Super-Alloys / Titanium |
| Length Group | 2.5D |
| Cutting Edge Material | HSS |
| Square Size | 0.152″ |
| Thread Tolerance Class (TCTR) | 3B|H3 |
| Measurement Type | Wire Gage |
| Standard | ANSI |
