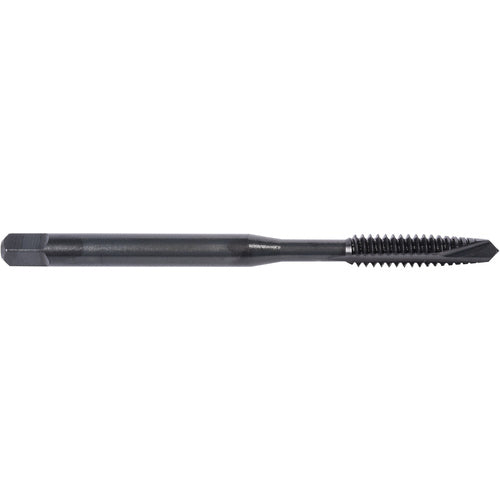

3/8-16 3 Flute 2B HSS Hi-Hook Plug Machine Tap E-code # 19853/8X16
Item #: PT051013053
Brand: Union Butterfield
Model #: 6008774
| Product Specifications | |
|---|---|
| Thread Standard | UNC |
| Tool Type | Machine Tap |
| Thread Size | 3/8″ - 16 |
| Connection Diameter Machine Side (DCONMS) | 0.563″ |
| Thread Diameter Size (TDZ) | 3/8″ |
| Tapping Prehole Diameter (Pre-hole) | 5/16″ |
| Threads per Inch (TPI) | 16 |
| End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | 2B |
| Style | Plug |
| Chamfer | 3.5P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | Steam Oxide |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Measurement Type | Fractional |
| Cutting Edge Material | HSS |
| Series/List # | 1985 |
| Standard | ISO 529 |
