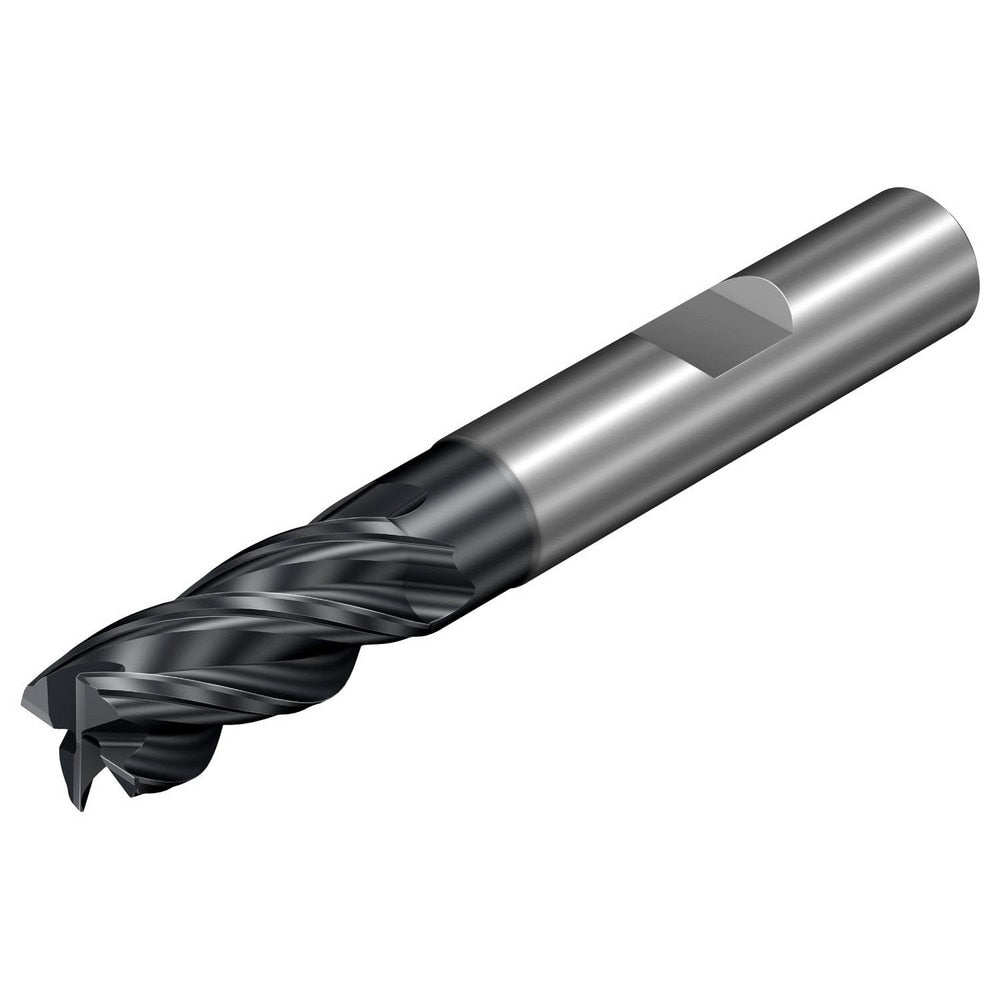

Corner Chamfer End Mill: 10.00 mm Dia, 23.00 mm LOC, 4 Flute, 0.20 mm Chamfer Width, Solid Carbide
Item #: 02193738
Brand: Sandvik Coromant
Model #: 8460302
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3937 |
| Mill Diameter (mm) | 10.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 23.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlCrN |
| Centercutting | Yes |
| Chamfer Width (Decimal Inch) | 0.0079 |
| Cutting Direction | Right Hand |
| Chamfer Width (mm) | 0.20 |
| Overall Length (mm) | 72.00 |
| Coolant Through | No |
| Overall Length (Decimal Inch) | 2.8347 |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.9055 |
| Length Type | Long |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Neck Diameter (mm) | 9.600 |
| Neck Diameter (Decimal Inch) | 0.3780 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel |
| UNSPSC Code | 23241614 |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Series | CoroMill Dura |
| Coating Classification | PVD |
| Manufacturers Catalog Number | 1K344-1000-XD 1730 |
