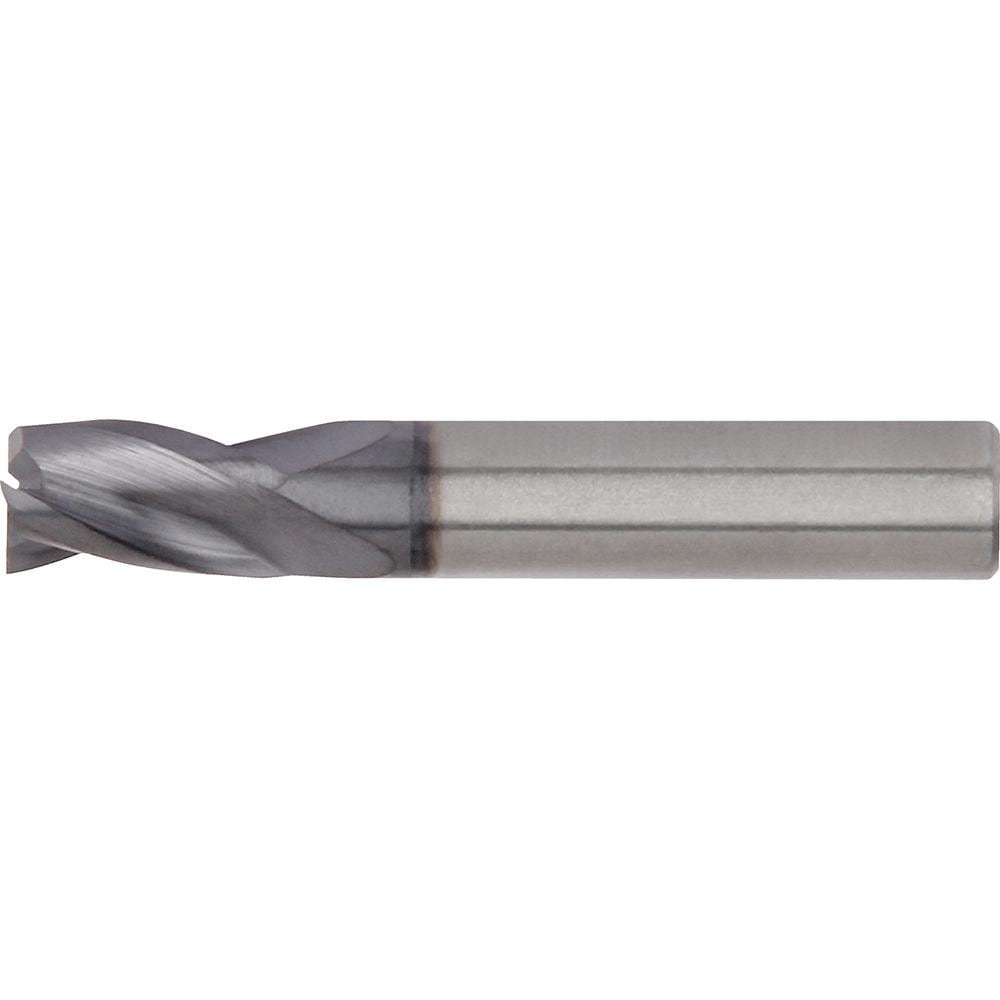

Brand: Widia / Part #: 6144206
Item #: 99063919
Brand: Widia
Model #: 6144206
Product Specifications
| Mill Diameter (Inch) | 1/32 |
| Mill Diameter (Decimal Inch) | 0.0312 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 5/64 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 1-1/2 |
| Helix Angle | 30 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.0781 |
| Material Grade | Uncoated |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Medium |
| Length Type | Regular |
| Through Coolant | No |
| Series | I3S |
