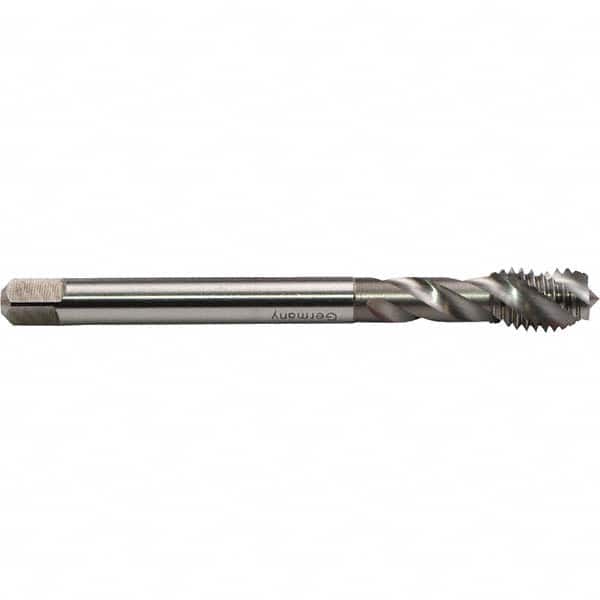

Emuge - M18x1.00 MF 0 Flute 6H Modified Bottoming Fast Spiral Flute Tap
Item #: 18460659
Brand: Emuge
Model #: C0503000.0388
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M18x1.00 |
| Chamfer | Modified Bottoming |
| Class of Fit | 6H |
| Thread Limit | D6 |
| Number of Flutes | 0 |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | MF |
| Oversize | No |
| Flute Type | Fast Spiral |
| Series/List | C0503000 |
