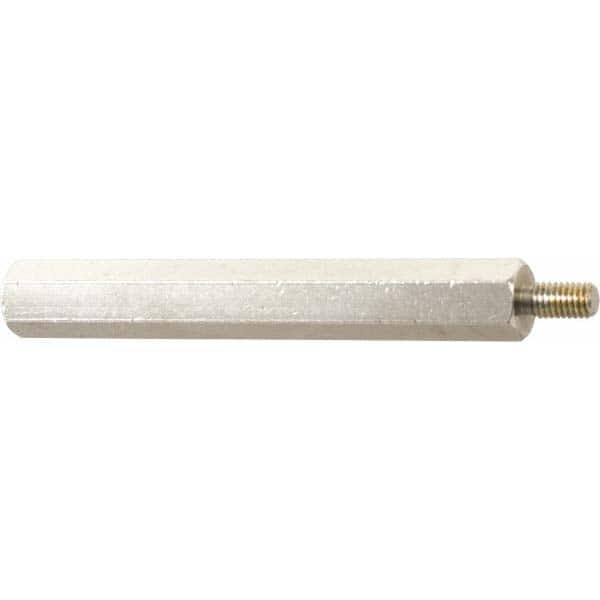

Electro Hardware - M2.5x0.45, 11.97mm OAL, 4.5mm Across Flats, Nylon Male/Female Hex Circuit Board Standoff
Item #: 95761029
Brand: Electro Hardware
Model #: MMF1307M19F62.5
Features and Benefits
Circuit board standoffs with male/female threads have one externally threaded end and one internally threaded end. The female end accepts male fasteners or other standoffs.
Nylon is a lightweight, nonconductive material that is resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
| Product Specifications | |
|---|---|
| Thread Type | Male/Female |
| Material | Nylon |
| System of Measurement | Metric |
| Body Shape | Hex |
| Overall Length (mm) | 11.97 |
| Thread Style | Fully Threaded |
| Thread Size | M2.5x0.45 |
| Width Across Flats (mm) | 4.50 |
| Finish/Coating | Uncoated |
| Body Length (mm) | 8.00 |
| Thread Length (mm) | 3.97 |
| Thread Depth (mm) | 4.80 |
| Material Grade | 6/6 |
