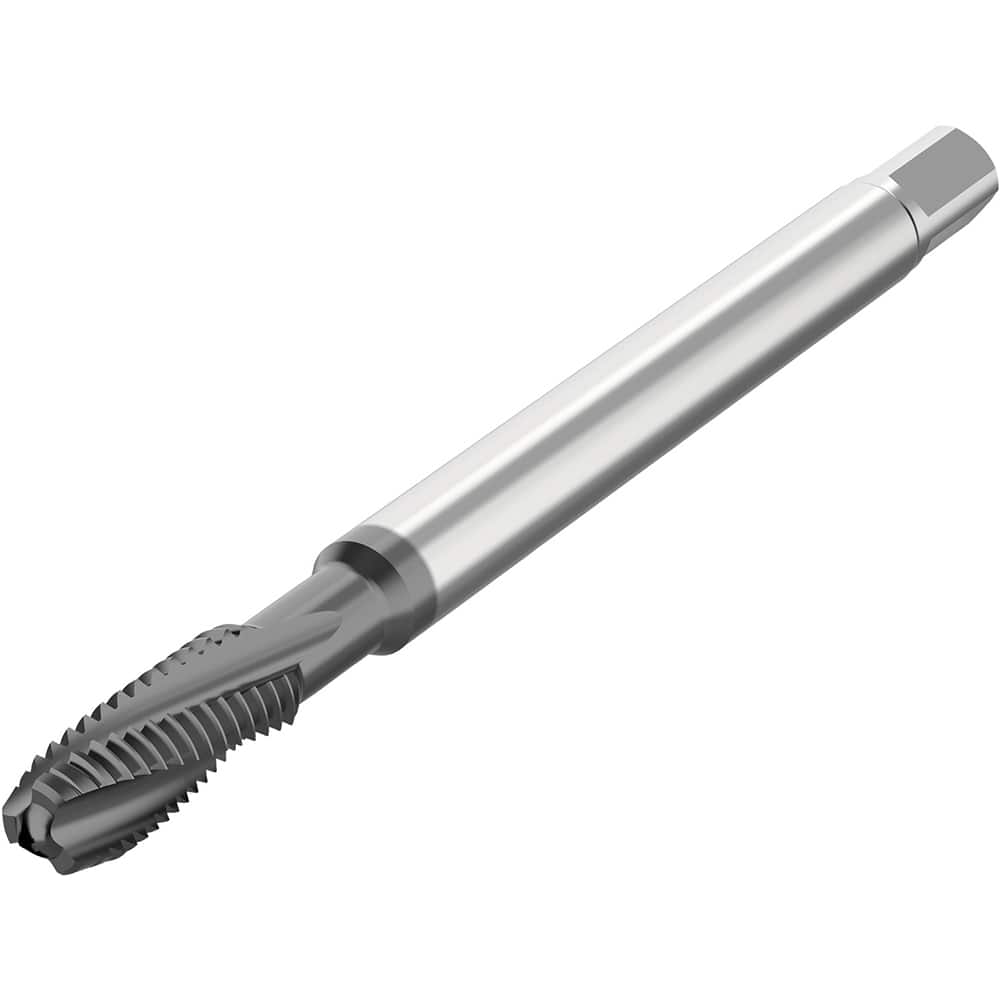

Seco - Spiral Flute Taps Thread Size (Inch): 3/8-24 Chamfer: Modified Bottoming
Item #: 14417018
Brand: Seco
Model #: 10001156
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Slow Spiral Flutes with 8-20 degree angles are used for tough materials like high nickel alloys, titanium and some series of stainless steels.
Product Specifications
Spiral Flute Taps; Thread Size (Inch): 3/8-24 ; Chamfer: Modified Bottoming ; Class of Fit: 3B ; Number of Flutes: 3 ; Material: HSS-E-PM ; Finish/Coating: ACN
| Thread Size (Inch) | 3/8-24 |
| Chamfer | Modified Bottoming |
| Class of Fit | 3B |
| Number of Flutes | 3 |
| Material | HSS-E-PM |
| Finish/Coating | ACN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | No |
| Overall Length (mm) | 100.0000 |
| Helix Angle | 15.00 |
| Thread Standard | UNJF |
| Oversize | No |
| Thread Length (mm) | 20.000 |
| Flute Type | Slow Spiral |
| Series/List | MTH |
| Tapping Depth (mm) | 33.50 |
| Shank Diameter (mm) | 10.0000 |
| Shank Length (mm) | 66.500 |
| Material Application | Super Alloys; Difficult-to-Machine Steels |
