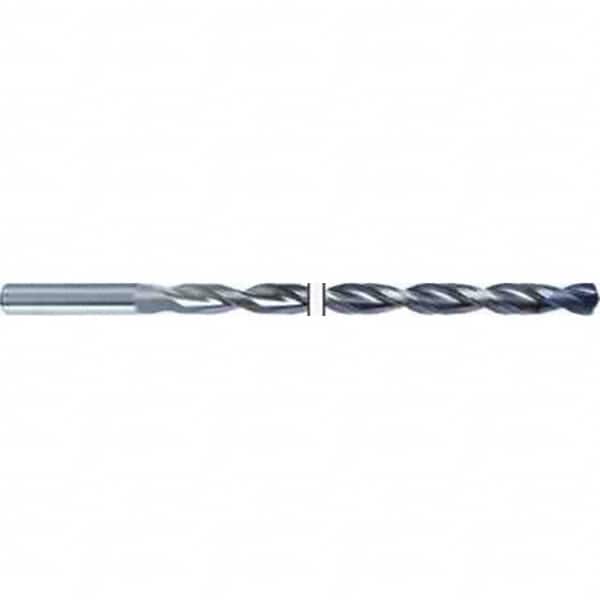

Guhring - 35/64" 135° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 98696230
Brand: Guhring
Model #: 9065110138900
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.5469 |
| Drill Bit Size (mm) | 13.89 |
| Drill Bit Size (Inch) | 35/64 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 318.00 |
| Overall Length (mm) | 367.00 |
| Flute Length x Diameter Ratio | 20xD |
| Shank Diameter (mm) | 14.00 |
| Specification Designation | DIN |
| Shank Length (mm) | 49.00 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 318.00 |
| Drill Bit Diameter Tolerance (mm) | h7 |
| Specification Number | DIN 6535HA |
| Web Thinning | Web-Thinned |
| Through Coolant | Yes |
| Drill Bit Grade | General Purpose |
| Series/List | 6511 |
| Length Type | RT100T |
