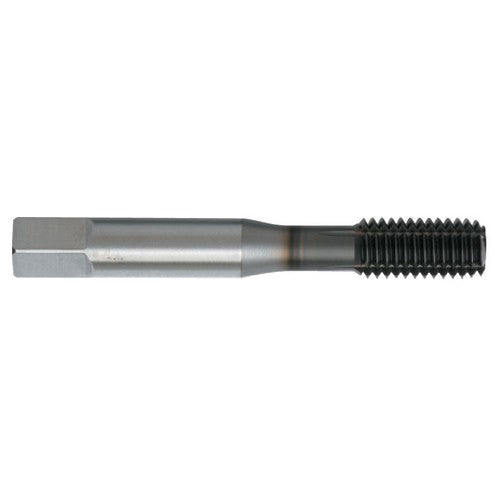

#4-40; Bottoming; H5; DLC ROL Form Tap
Item #: NT1097857
Brand: Nachi America Inc
Model #: 97857
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Chamfer | 1.5P |
| Thread Diameter Size (TDZ) | #4 |
| Special Feature | High Performance |
| Overall Length (OAL) | 1-7/8″ |
| Measurement Type | Machine Screw |
| Thread Cutting Part Length (THL) | 0.354″ |
| Flute Type | Fluteless |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Style | Bottoming |
| Flute Count (NOF) | 0 |
| Cutting Edge Material | HSSE-V |
| Thread Tolerance Class (TCTR) | H5 |
| Cutting Direction (HAND) | Right Hand |
| Coating | Diamond |
| Product_Description | DLC Rol Form Tap |
| Threads per Inch (TPI) | 40 |
| Thread Size | #4 - 40 |
| Helix Angle | CW |
