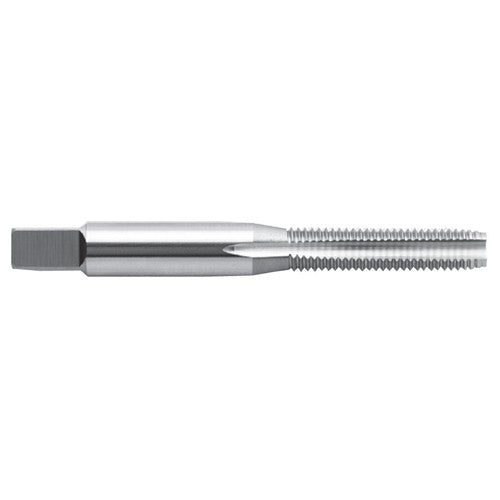

5-0.8; Plug; D4; HSS METRIC Hand Tap 3F
Item #: NT1054096
Brand: Nachi America Inc
Model #: 54096
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M5 |
| Special Feature | General Purpose |
| Thread Pitch (TP) | 0.8 mm |
| Tool Type | Hand Tap |
| Overall Length (OAL) | 60.325 mm |
| Chamfer | 4P-5P |
| Thread Cutting Part Length (THL) | 22.225 mm |
| Coating | Uncoated |
| Connection Diameter Machine Side (DCONMS) | 4.9276 mm |
| Flute Type | Straight |
| Flute Count (NOF) | 4 |
| Style | Plug |
| Flute Helix Angle (FHA) | CW |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | D4 |
| Thread Size | M5 × 0.8 |
