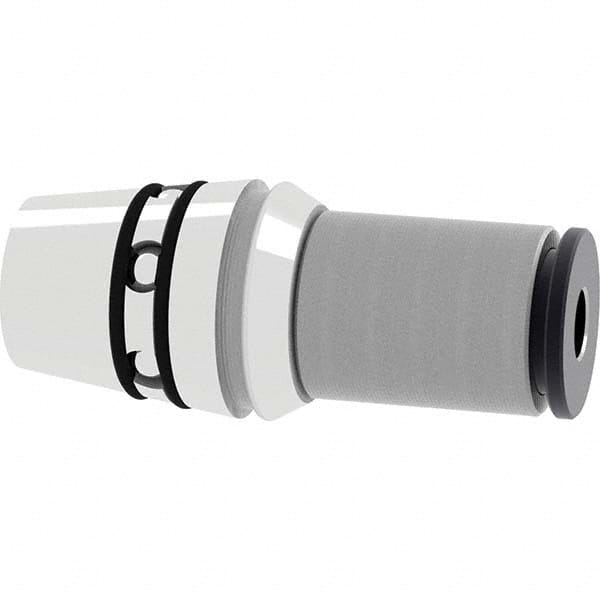

Bilz - Collet Chucks Collet System: Mini-ER Collet Series: ER08
Item #: 17951096
Brand: Bilz
Model #: 5111080
Product Specifications
Collet Chucks; Collet System: Mini-ER ; Collet Series: ER08 ; Shank Type: Modular Connection ; Modular Connection Size: STH2 ; Projection (mm): 21.00 ; Projection (Decimal Inch): 0.8268
| Collet System | Mini-ER |
| Collet Series | ER08 |
| Shank Type | Modular Connection |
| Modular Connection Size | STH2 |
| Projection (mm) | 21.00 |
| Projection (Decimal Inch) | 0.8268 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 5.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 46.00 |
| Overall Length (Decimal Inch) | 1.8110 |
| Nut Tightening Torque (Ft/Lb) | 4.000 |
| Nose Type | Extended Nose |
| Type | ER Collet |
| Nose Diameter (mm) | 19.00 |
| Nose Diameter (Decimal Inch) | 0.7480 |
| Collet System | ER |
| Collet Nut Diameter (Decimal Inch) | 0.4724 |
| Collet Nut Diameter (mm) | 12.00 |
