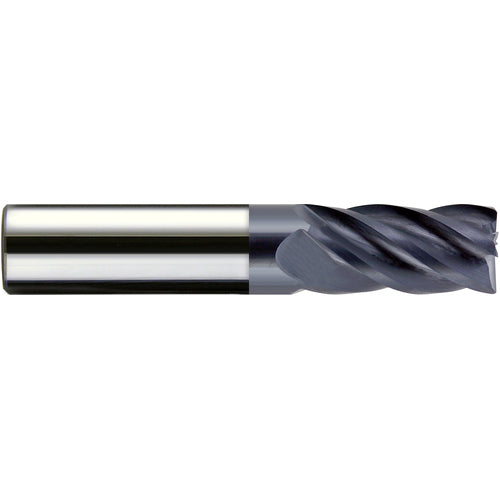

3/4″ Dia. × 3/4″ Shank × 2-1/4″ DOC × 5″ OAL, Carbide, veri4, 5 Flute, Plain, External, Corner Radius, Solid End Mill Series/List #5102
Item #: MT8499508
Brand: Morse Cutting Tools
Model #: 99508
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Corner Radius (RE) | 0.030″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Tool Type | High Performance End Mill |
| Depth of Cut Maximum (APMX) | 2-1/4″ |
| Length Group | Long |
| Overall Length (OAL) | 5″ |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Style | Finishing |
| Coating | veri4 |
| Decimal Equivalent | 0.750″ |
| Flute Count (NOF) | 5 |
| Measurement Type | Inch |
| Shank Type | Plain |
| Series/List # | 5102 |
| End Shape | Corner Radius |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.030″ |
| Usable Length (LU) | 2-1/4″ |
