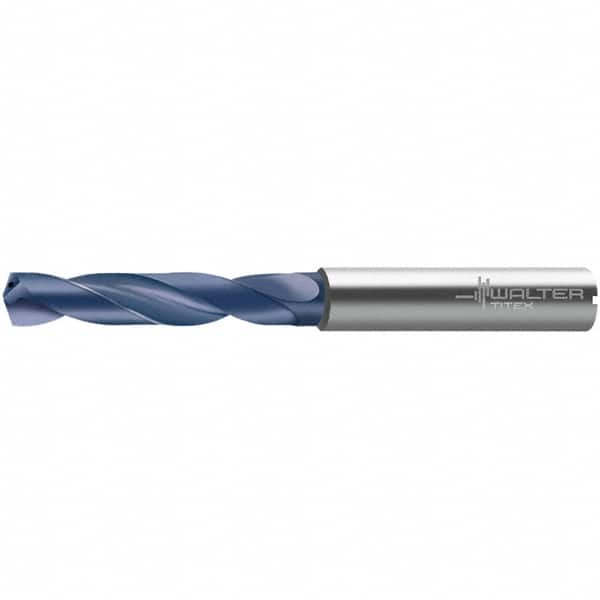

Walter-Titex - Letter E (1/4) 140° Solid Carbide Screw Machine Drill Bit
Item #: 38128153
Brand: Walter-Titex
Model #: 6968775
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2500 |
| Drill Bit Size (mm) | 6.35 |
| Drill Bit Size (Letter) | E |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Flute Length (mm) | 34.00 |
| Flute Length (Decimal Inch) | 1.3390 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1100 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Maximum Drilling Depth (mm) | 24.00 |
| Maximum Drilling Depth (Decimal Inch) | 0.9450 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 1.16 |
| Drill Point Length (Decimal Inch) | 0.0450 |
| Drill Tip Finish/Coating | TiNAl |
| Through Coolant | Yes |
| Material Grade | Carbide |
| Series/List | DC150-03-A1 |
