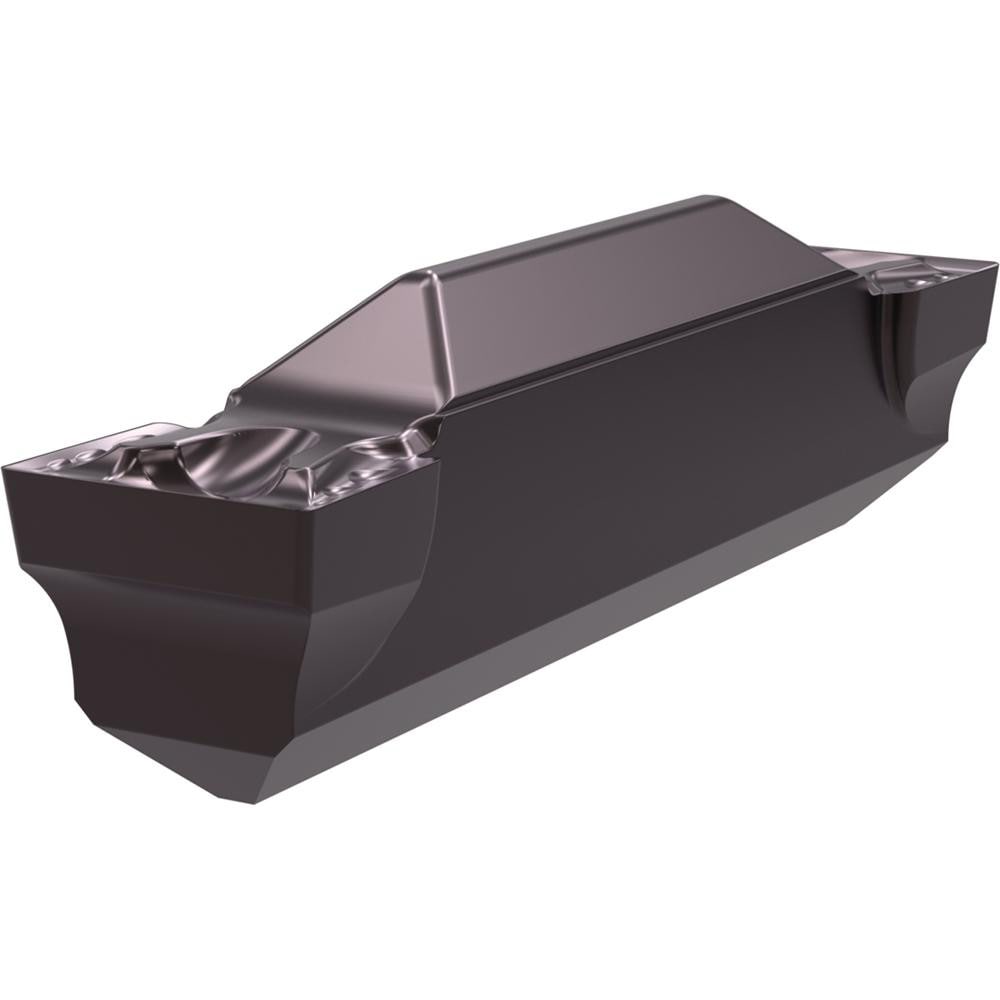

Brand: Widia / Part #: 4113572

Brand: Widia / Part #: 4113572


Item #: 94506268
Brand: Widia
Model #: 4113572

Product Specifications

Insert Style WMT
Insert Size Code 4
Insert Size 4
Insert Material Carbide
Manufacturer Grade WU10PT
Cutting Width (Decimal Inch) 0.1575
Maximum Depth of Cut (Decimal Inch) 1.0000
Insert Holding Method Clamp
Insert Hand Neutral
Corner Radius (Decimal Inch) 0.0126
Lead Angle 5.000
Rake Positive
Multi-use Tool No
Cutting Tool Application Grooving
Series WMT
Coating Process PVD
Overall Length (Decimal Inch) 1.0000
Overall Length (Inch) 1
Primary Workpiece Material Super-alloys & Titanium
Primary Workpiece Material Code S
Secondary Workpiece Material Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel
Secondary Workpiece Material Code P; H; K; M; N
Ansi Code WMTS400M4P03PT
Iso Code WMTS400M4P03PT
Relief Angle 5
Maximum Corner Radius (Decimal Inch) 0.0126
Manufacturers Catalog Number WMTS400M4P03PT
Insert Thickness (Decimal Inch) 0.1810
Minimum Groove Width (mm) 4.00
Type WMT Groove Cutoff Turn Insert
Maximum Groove Width (mm) 4.00
Minimum Insert Width (mm) 3.15
Chip Breaker PT
Insert Seat Size 4
Style WMT Groove Cutoff Turn Insert
Insert Height (Decimal Inch) 0.1810
Full Radius No
Gage Diameter (Decimal Inch) 0.0940
Coating Classification PVD
Hole Diameter (Decimal Inch) 0.0000
Gage Diameter (Inch) 3/32
Overall Width (Decimal Inch - 4 Decimals) 0.1240
Coating/Finish TiAlN
Number Of Cutting Edges 2
Single Or Double End Double
Groove Width (mm) 4.00
For Use With Grooving
$28.71

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
