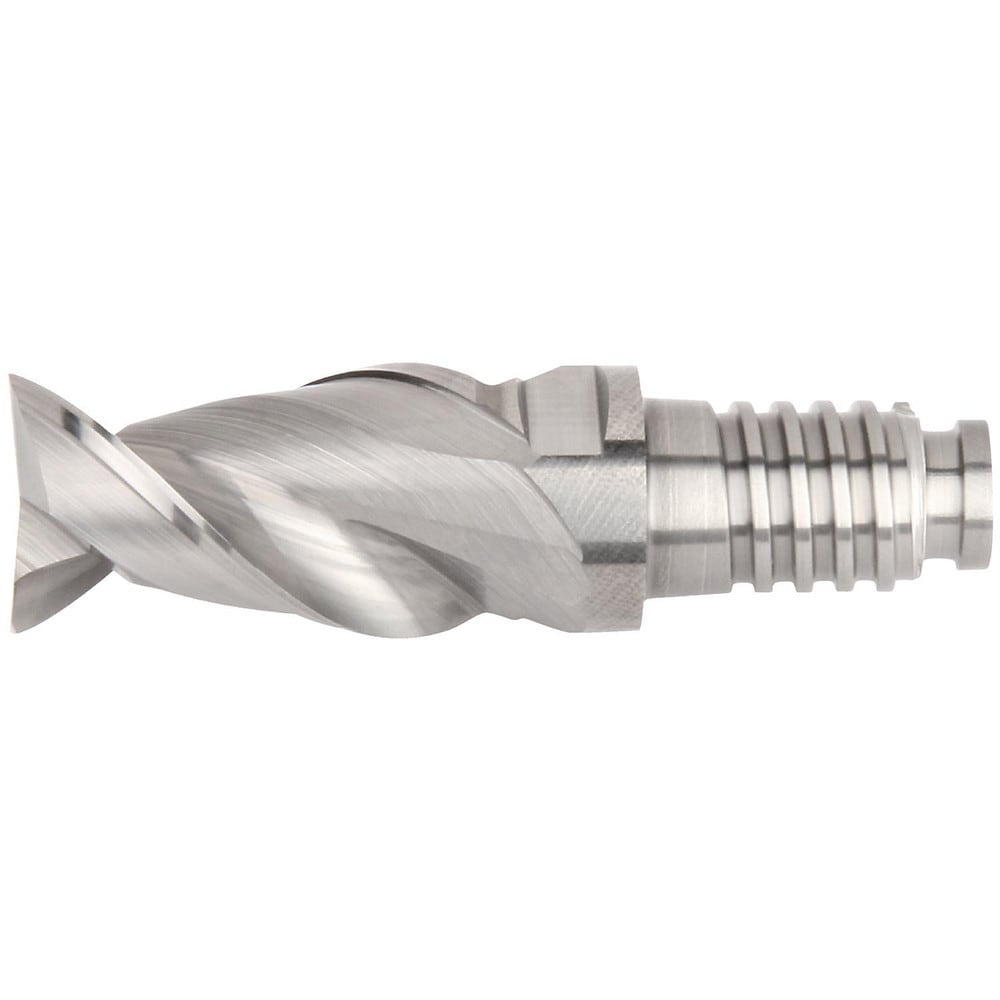

Brand: Widia / Part #: 6151068
Item #: 97693048
Brand: Widia
Model #: 6151068
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Connection Type | Duo-Lock 10 |
| Overall Length (Decimal Inch) | 1.3346 |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Center Cutting | Center Cutting |
| Flute Type | Helical |
| Helix Angle | 45 |
| Helix Style | High |
| Maximum Helix Angle | 45 |
| Minimum Helix Angle | 45 |
| Series/List | 5AC2 |
| Neck Diameter (Decimal Inch) | 0.3593 |
| Shank Diameter (mm) | 9.1300 |
| Variable Helix | No |
| Mill Diameter (Fractional Inch) | 3/8 |
| Pitch | Normal |
| End Type | Square End |
| Length Type | Standard |
| Number Of Pieces | 1 |
| Chipbreaker | None |
| Shank Type | Modular Connection |
| Extended Reach | No |
| Single Or Double End | Single |
| Material Application | Aluminum |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5626 |
| Variable Index | No |
| Number Of Flutes | 2 |
| Finish Coating | Bright/Uncoated |
