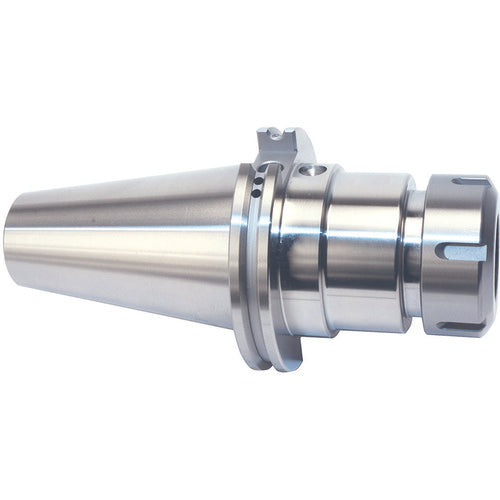

CAT40 ER16 16 × 6″ AD
Item #: MT6519861
Brand: Morse Cutting Tools
Model #: 19861
| Product Specifications | |
|---|---|
| Shank Size (SS) | CAT40 |
| Shank Type | CAT |
| Connection Size (CSI) | ER16 |
| Shank Standard | ANSI B5.5 |
| Body Diameter (BD) | 1.102″ |
| Tool Type | ER Collet Chuck |
| Protruding Length (LPR) | 6″ |
| Coolant Supply Property (CSP) | AD |
| Body Length Maximum (LBX) | 5.250″ |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 1″ |
| Body Length (LB) | 4.620″ |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 10″ |
| Connection Diameter Machine Side (DCONMS) | CAT40 |
| Series/List # | 1009 |
| Flange Diameter (DF) | 2.500″ |
| Nut Diameter | 1.260″ |
