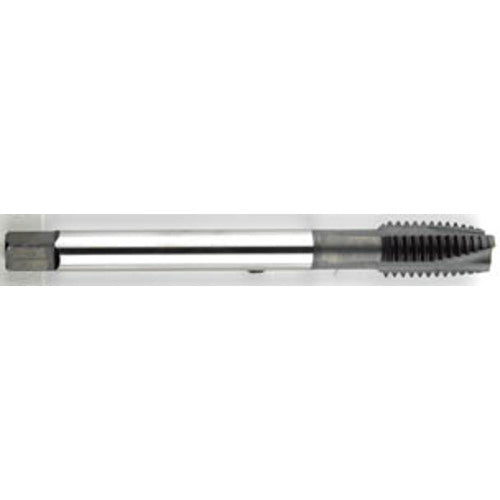

1/4-20 Dia. - GH3 - 3 FL - Premium - HSS - TiCN - Plug - Spiral Point Tap Series/List #2088C
Item #: MT4261169
Brand: Morse Cutting Tools
Model #: 61169
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Cutting Edge Material | HSSPM |
| Thread Size | 1/4″ - 20 |
| Standard | DIN Length |
| Thread Diameter Size (TDZ) | 1/4″ |
| Tool Type | High Performance Tap |
| Threads per Inch (TPI) | 20 |
| Thread Cutting Part Length (THL) | 0.669″ |
| Thread Tolerance Class (TCTR) | H3 |
| Flute Type | Straight |
| Usable Length (LU) | 0.669″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 3.15″ |
| Style | Plug |
| Chamfer | Plug |
| Measurement Type | Fractional |
| Coating | TiCN |
| Series/List # | 2088C |
| Flute Count (NOF) | 3 |
