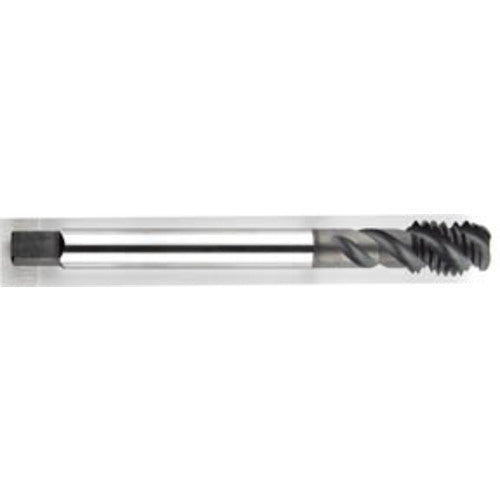

#10 - 32 UNF 3-Flute, H2 Semi-Bottoming Series/List # 2089 Spiral Flute Tap
Item #: MT4230607
Brand: Morse Cutting Tools
Model #: 30607
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #10 |
| Thread Tolerance Class (TCTR) | H2 |
| Threads per Inch (TPI) | 32 |
| Standard | DIN Length - ANSI Shank |
| Thread Standard | UNF |
| Tool Type | High Performance Tap |
| Overall Length (OAL) | 2.756″ |
| Chamfer | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 0.354″ |
| Coating | Steam Oxide |
| Flute Count (NOF) | 3 |
| Flute Type | Spiral |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium |
| Style | Semi-Bottoming |
| Cutting Edge Material | HSSPM |
| Measurement Type | Machine Screw |
