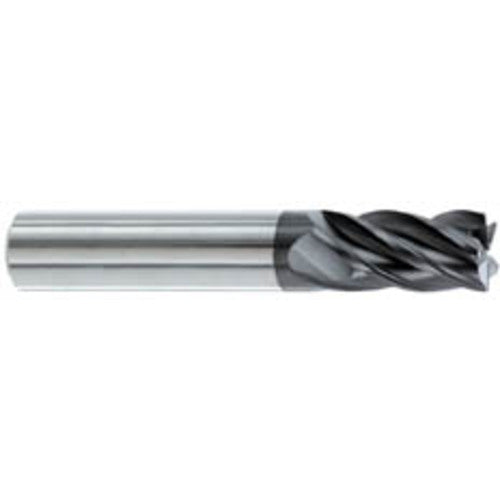

3/4″ × 3/4″ × 7/8″ × 3″ 0.0300-0.0350″ C/R 5 Flute Single End Carbide HPE High Performance End Mill-AlTiN
Item #: MT4156294
Brand: Morse Cutting Tools
Model #: 56294
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Applicable Material | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Corner Radius (RE) | 0.030″ - 0.035″ |
| Depth of Cut Maximum (APMX) | 7/8″ |
| Tool Type | Single End |
| Overall Length (OAL) | 3″ |
| Length Group | Stub |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | AlTiN |
| Style | HPE Ultra-High Performance End Mills |
| Flute Count (NOF) | 5 |
| Decimal Equivalent | 0.750″ |
| Flute Helix Angle (FHA) | Variable |
| Measurement Type | Inch |
| Shank Type | Plain |
| Series/List # | 5986 |
| End Shape | Corner Radius |
| Package Height | .75000 |
| Usable Length (LU) | 7/8″ |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.030″ - 0.035″ |
