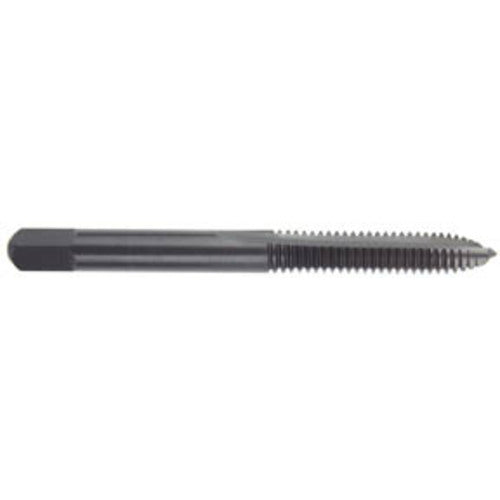

1-72 Dia. - GH2 - 2 FL - HSS - Black Oxide - Plug Spiral Point Tap Series/List #2070X
Item #: MT3634126
Brand: Morse Cutting Tools
Model #: 34126
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Coating | Steam Oxide |
| Thread Size | #1 - 72 |
| Flute Count (NOF) | 2 |
| Thread Diameter Size (TDZ) | #1 |
| Thread Cutting Part Length (THL) | 3/8″ |
| Threads per Inch (TPI) | 72 |
| Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H2 |
| End Shape | Spiral Point |
| Usable Length (LU) | 3/8″ |
| Style | Plug |
| Overall Length (OAL) | 1-11/16″ |
| Measurement Type | Machine Screw |
| Chamfer | Plug |
| Series/List # | 2070X |
