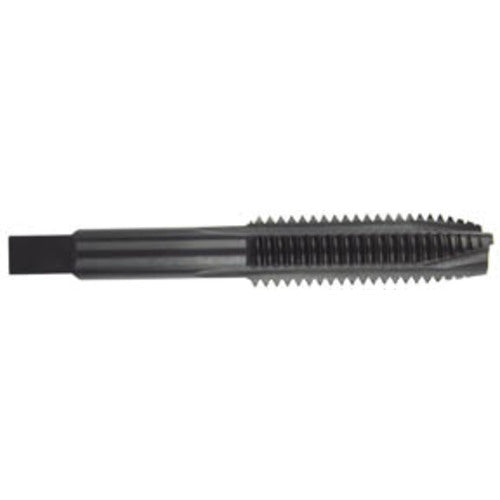

1/2-13 Dia. - GH5 - 3 FL - HSS - Black Oxide - Plug Spiral Point Tap Series/List #2047X
Item #: MT3633076
Brand: Morse Cutting Tools
Model #: 33076
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Coating | Steam Oxide |
| Thread Size | 1/2″ - 13 |
| Flute Count (NOF) | 3 |
| Thread Diameter Size (TDZ) | 1/2″ |
| Thread Cutting Part Length (THL) | 1-21/32″ |
| Threads per Inch (TPI) | 13 |
| Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H5 |
| End Shape | Spiral Point |
| Usable Length (LU) | 1-21/32″ |
| Style | Plug |
| Overall Length (OAL) | 3-3/8″ |
| Measurement Type | Fractional |
| Chamfer | Plug |
| Series/List # | 2047X |
