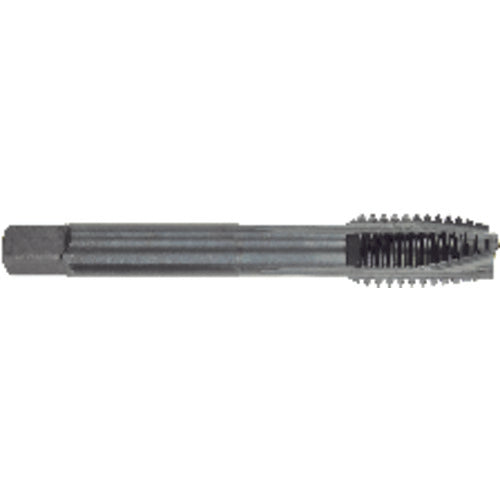

M7 × 1.0 Dia. - D5 - 3 FL - HSS - Surface Treated - Plug - Spiral Point Tap Series/List #2090M
Item #: MT3535245
Brand: Morse Cutting Tools
Model #: 35245
Product Specifications | |
---|---|
Thread Standard | Metric |
Tool Type | Production Tap |
Thread Size | M7 × 1 |
Special Feature | ShearTap |
Thread Diameter Size (TDZ) | M7 |
Applicable Material | Steel | Stainless Steel |
Thread Pitch (TP) | 1 mm |
Thread Cutting Part Length (THL) | 0.690″ |
Thread Tolerance Class (TCTR) | D5 |
Flute Type | Straight |
Usable Length (LU) | 0.690″ |
End Shape | Spiral Point |
Overall Length (OAL) | 2-23/32″ |
Style | Plug |
Chamfer | 3 to 5 Threads |
Cutting Direction (HAND) | Right |
Coating | Steam Oxide Over Nitride |
Coolant Supply Property (CSP) | External |
Flute Count (NOF) | 3 |
Measurement Type | Metric |
Cutting Edge Material | HSS |
Series/List # | 2090M |
