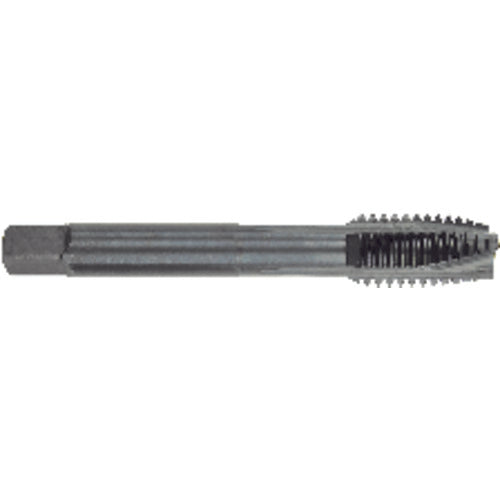

M3 x .50 Dia. - D3 - 2 FL - Dia. - HSS - Surface Treated - Plug - Spiral Point Tap Series/List #2090M
Item #: MT3535240
Brand: Morse Cutting Tools
Model #: 35240
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Tool Type | Production Tap |
| Thread Size | M3 × 0.5 |
| Special Feature | ShearTap |
| Thread Diameter Size (TDZ) | M3 |
| Applicable Material | Steel | Stainless Steel |
| Thread Pitch (TP) | 0.5 mm |
| Thread Cutting Part Length (THL) | 0.310″ |
| Thread Tolerance Class (TCTR) | D3 |
| Flute Type | Straight |
| Usable Length (LU) | 0.310″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 1-15/16″ |
| Style | Plug |
| Chamfer | 3 to 5 Threads |
| Cutting Direction (HAND) | Right |
| Coating | Steam Oxide Over Nitride |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Cutting Edge Material | HSS |
| Series/List # | 2090M |
