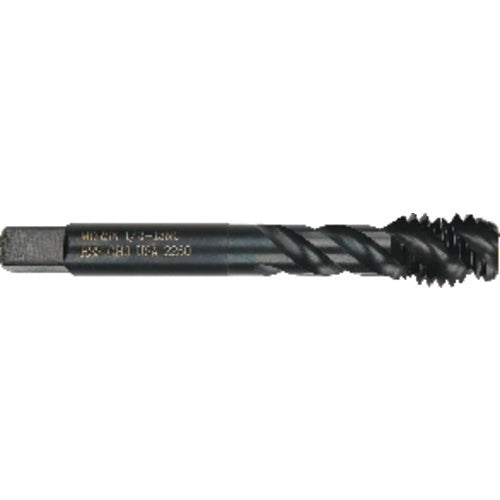

1/4″ - 20 NC 3-Flute, H5 Semi-Bottoming Series/List # 2091 Spiral Flute Tap
Item #: MT3534467
Brand: Morse Cutting Tools
Model #: 34467
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ |
| Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 20 |
| Special Feature | ShearTap |
| Thread Standard | NC |
| Tool Type | Production Tap |
| Overall Length (OAL) | 2-1/2″ |
| Chamfer | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 0.433″ |
| Coating | Steam Oxide Over Nitride |
| Flute Count (NOF) | 3 |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 48 Degrees |
| Style | Semi-Bottoming |
| Applicable Material | Steel | Stainless Steel |
| Measurement Type | Fractional |
| Cutting Edge Material | HSS |
