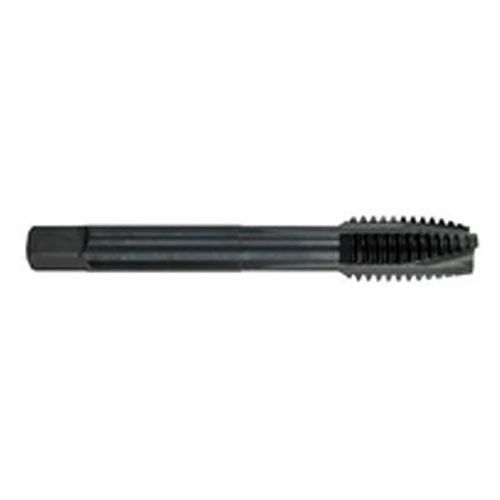

10-32 Dia. - H2 - 3 FL - HSS - Surface Treated - Plug - Spiral Point Tap Series/List #2090
Item #: MT3534411
Brand: Morse Cutting Tools
Model #: 34411
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Tool Type | Production Tap |
| Thread Size | #10 - 32 |
| Special Feature | ShearTap |
| Thread Diameter Size (TDZ) | #10 |
| Applicable Material | Steel | Stainless Steel |
| Threads per Inch (TPI) | 32 |
| Thread Cutting Part Length (THL) | 1/2″ |
| Thread Tolerance Class (TCTR) | H2 |
| End Shape | Spiral Point |
| Usable Length (LU) | 1/2″ |
| Style | Plug |
| Overall Length (OAL) | 2-3/8″ |
| Cutting Direction (HAND) | Right |
| Chamfer | 3 to 5 Threads |
| Coolant Supply Property (CSP) | External |
| Coating | Steam Oxide Over Nitride |
| Measurement Type | Machine Screw |
| Flute Count (NOF) | 3 |
| Series/List # | 2090 |
| Cutting Edge Material | HSS |
