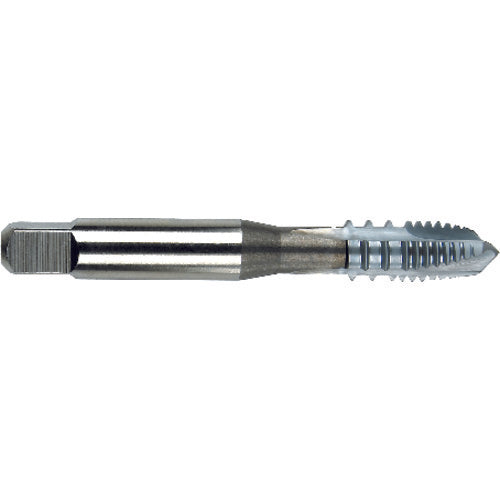

5/16-18 Dia. - H3 - 3 FL - Powder Metal - CrN - Plug - Spiral Point Tap Series/List #2092S
Item #: MT3360717
Brand: Morse Cutting Tools
Model #: 60717
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Cutting Edge Material | HSSPM |
| Thread Size | 5/16″ - 18 |
| Tool Type | High Performance Tap |
| Thread Diameter Size (TDZ) | 5/16″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Threads per Inch (TPI) | 18 |
| Thread Cutting Part Length (THL) | 11/16″ |
| Thread Tolerance Class (TCTR) | H3 |
| Flute Type | Straight |
| Usable Length (LU) | 11/16″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 2-23/32″ |
| Style | Plug |
| Chamfer | Plug |
| Measurement Type | Fractional |
| Coating | CrN |
| Series/List # | 2092S |
| Flute Count (NOF) | 3 |
