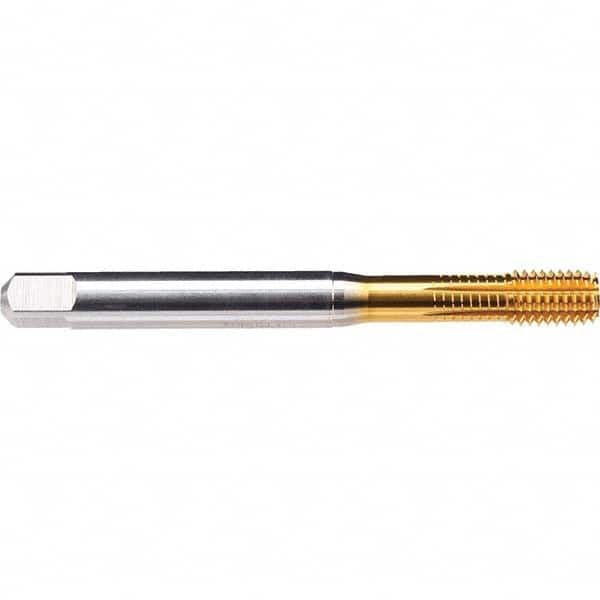

Emuge - #8-32 UNC 2BX Bottoming Thread Forming Tap
Item #: 58150897
Brand: Emuge
Model #: BU396A00.5006
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #8-32 |
| Class of Fit | 2BX |
| Thread Limit | H4 |
| Chamfer | Bottoming |
| Finish/Coating | TiN-T26 |
| Material | Powdered Metal High Speed Steel |
| Overall Length (Decimal Inch) | 2.4803 |
| Overall Length (mm) | 63.00 |
| Thread Standard | UNC |
| Neck Length (Decimal Inch) | 0.8268 |
| Tapping Depth (Decimal Inch) | 0.4920 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Through Coolant | No |
| Material Application | Stainless Steel |
