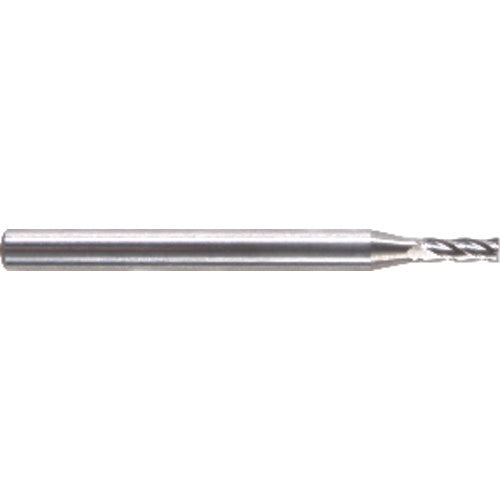

.100 Dia. × 1-1/2 Overall Length 4-Flute Square End Solid Carbide SE End Mill-Round Shank-Center Cut-Uncoated
Item #: MT3152747
Brand: Morse Cutting Tools
Model #: 52747
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.1″ |
| Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 0.3″ |
| Usable Length (LU) | 0.3″ |
| Overall Length (OAL) | 1-1/2″ |
| Corner Radius (RE) | None |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | Bright |
| Decimal Equivalent | 0.1″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees |
| Corner Radius (RE) / Chamfer Width (CHW) | None |
