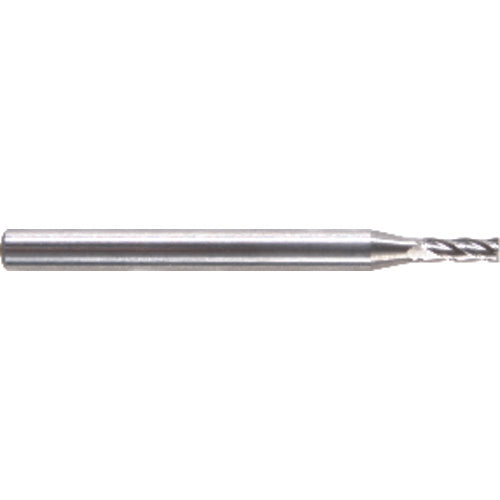

.120 Dia. × 1-1/2 Overall Length 4-Flute Square End Solid Carbide SE End Mill-Round Shank-Center Cut-Uncoated Series/List #5918
Item #: MT3152502
Brand: Morse Cutting Tools
Model #: 52502
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.12″ |
| Usable Length (LU) | 0.18″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Corner Radius (RE) | None |
| Depth of Cut Maximum (APMX) | 0.18″ |
| Tool Type | Single End|Center Cutting |
| Overall Length (OAL) | 1-1/2″ |
| Length Group | Stub |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | Bright |
| Decimal Equivalent | 0.12″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Shank Type | Plain |
| Corner Radius (RE) / Chamfer Width (CHW) | None |
| End Shape | Square |
