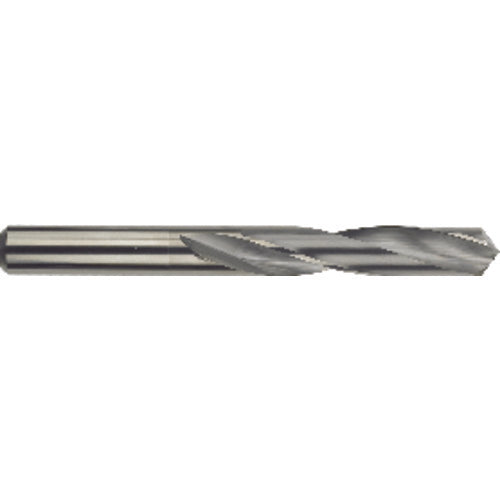

3/16″ Dia. × 3/16″ Shank × 1-5/8″ Flute Length × 2-3/4″ OAL, Standard, 118°, Bright, 2 Flute, External Coolant, Round Solid Carbide Drill Series/List #5374
Item #: MT1751080
Brand: Morse Cutting Tools
Model #: 51080
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3/16″ |
| Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/16″ |
| Point Shape | Split |
| Decimal Equivalent | 0.1875″ |
| Measurement Type | Inch |
| Length Group | Standard |
| Series/List # | 5374 |
| Coating | Bright |
| Usable Length (LU) | 1-5/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Length Chip Flute (LCF) | 1-5/8″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2-3/4″ |
| Point Angle (SIG) | 118 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 25 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Body Material | Carbide |
| Cutting Edge Material | Carbide |
