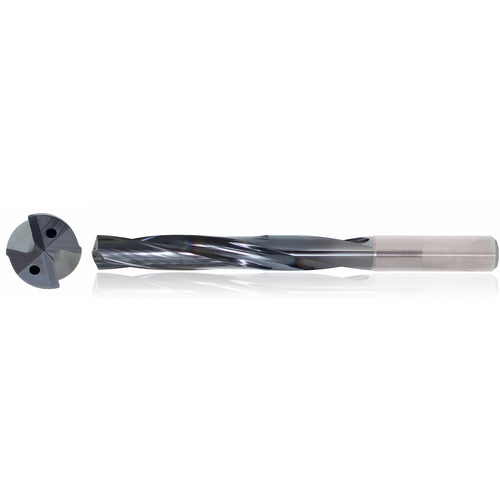

1/4″ Dia. × 8 mm Shank × 34 mm Flute Length × 79 mm OAL, 3xD, TiAlN, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill Series/List #5614
Item #: MT0401840
Brand: Morse Cutting Tools
Model #: 01840
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ |
| Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4″ |
| Tool Type | High Performance |
| Decimal Equivalent | 0.25″ |
| Flute Type | Helical |
| Length Group | 3xD |
| Measurement Type | Inch |
| Coating | TiAlN |
| Series/List # | 5614 |
| Applicable Material | Super-Alloys / Titanium |
| Usable Length (LU) | 34 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Length Chip Flute (LCF) | 34 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 79 mm |
| Point Angle (SIG) | 15 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 34 mm |
| Feature | DOUBLE-MARGIN DRILL, COOLANT THRU |
| Flute Helix Angle (FHA) | 15 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical |
| Body Material | Carbide |
