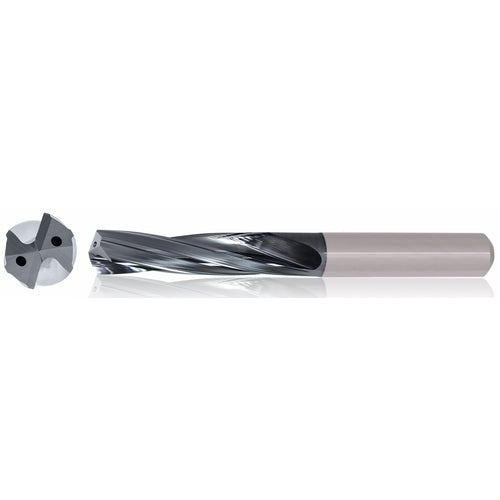

13/64″ Dia. × 6 mm Shank × 168 mm Flute Length × 205 mm OAL, 25xD, TiAlCN, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill Series/List #5613
Item #: MT0301480
Brand: Morse Cutting Tools
Model #: 01480
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 13/64″ |
| Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 13/64″ |
| Tool Type | High Performance Carbide Drill |
| Decimal Equivalent | 0.2031″ |
| Flute Type | Helical |
| Length Group | 25xD |
| Measurement Type | Inch |
| Coating | TiAlCN |
| Series/List # | 5613 |
| Applicable Material | Cast Iron |
| Usable Length (LU) | 168 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Length Chip Flute (LCF) | 168 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 205 mm |
| Point Angle (SIG) | 15 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 168 mm |
| Feature | TRIPLE-MARGIN DRILL, COOLANT THRU |
| Flute Helix Angle (FHA) | 15 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical |
| Body Material | Carbide |
