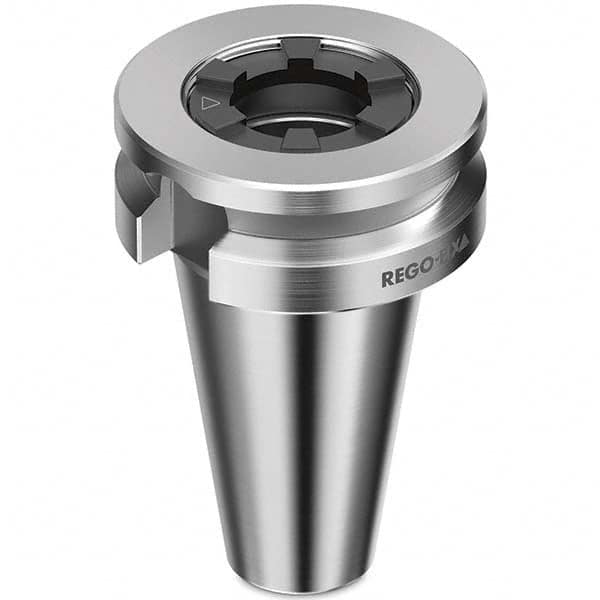

Rego-Fix - 3mm x 26mm BT40 Taper Shank ER40 Collet Chuck
Item #: 18468710
Brand: Rego-Fix
Model #: 4140.14053
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Projection (mm) | 100.00 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 3.00 |
| Maximum Collet Capacity (mm) | 26.00 |
| Actuator Type | Wrench |
| Type | ER Collet |
| Nose Diameter (mm) | 63.00 |
| Maximum RPM | 25000 |
| Locknut Diameter (Decimal Inch) | 2.4822 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| TIR (mum) | 3.00 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (mm) | 63.00 |
| Additional Information | With Hi-Q Nut |
